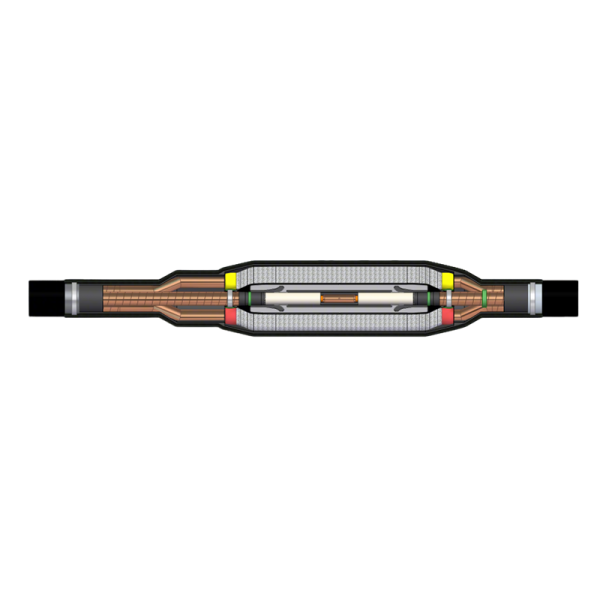

Three core Joint

It is applicable to connect extruding MV cables with other electrical equipment such as switchgear ,it is suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.

Features

I Easy Installation: no flame and heat required,no special tools required.
II Compact Design: suitable for narrow space and small size cable well
III Stable rubber mechanical performance: Excellent elastic permanent memory performance; keep excellent tight interface pressure to cable insulation for years’ operation.
IV Stable rubber electrical performance:Excellent insulation properties and tracking resistance

Standards: IEC60502

Voltage Level:

3.6/6kV、6/10kV、8.7/15kV、12/20kV、18/30kV、19/33kV、21/35kV、26/35kV

Products specification：

Voltage （kV）	Insulation Diameter（mm）	Cross Section Area of Conductor （mm2）
3.6/6kV、6/10kV、8.7/15kV、12/20kV	18-44	25-800
18/30kV、19/33kV、21/35kV、26/35kV	26-49	50-630
