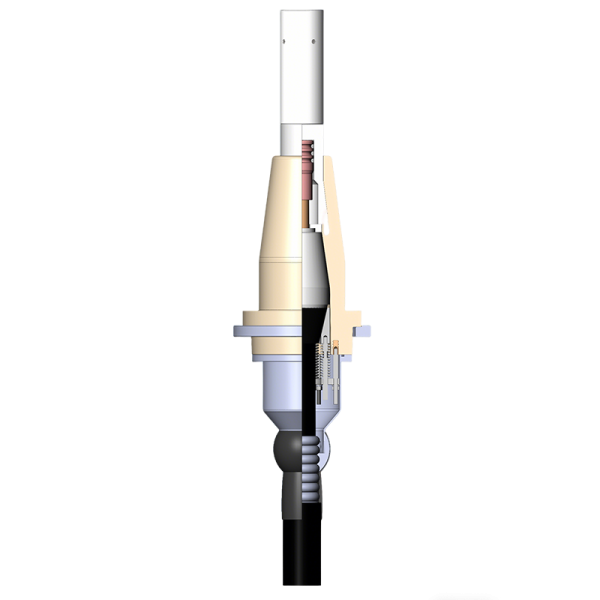

It’s applicable to connect extruding HV cables to GIS equipment and transformer,it is suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.
| Voltage （kV） | 245 |
| Insulation Diameter（mm） | Φ80.6～Φ125.6 |
| Cross section Area of cable conductor（mm2） | 400-3500mm² |
| The conductor connection method | Crimping Bolt shear |
| Testing items | Testing contents | value |
| AC withstand Test | Dry AC withstand test | 254kV 15min |
| Impulse test | Lightning impulse | 1050kV, ±10 times |
| Current carrying capacity | Rate current Short-circuit current |
By cable spec |
| Stress cone electrical performance |
AC withstand test Partial discharge test |
318kV 30min As 190kV，≤5pC |
The information of dimension and weight
| Product’s Type | The height (mm) | The weight (kG) |
| Short Type | 1350 | 155 |
| Long Type | 1700 | 165 |
