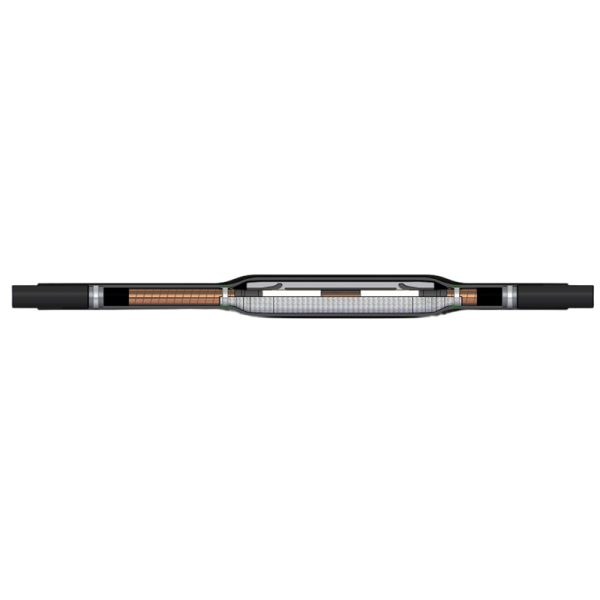

Single core Joint

It is applicable to connect extruding MV cables each other, suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.

Features

I Easy Installation: no flame and heat required,no special tools required.
II Compact Design: suitable for narrow space and small size cable well.
III Stable rubber mechanical performance: Excellent elastic permanent memory performance; keep excellent tight interface pressure to cable insulation for years’ operation.
IV Stable rubber electrical performance:Excellent insulation properties and tracking resistance.

Standards: IEC60502

Voltage Level:

3.6/6kV、6/10kV、8.7/15kV、12/20kV、18/30kV、19/33kV、21/35kV、26/35kV

Products specification：

Voltage （kV）	Insulation Diameter（mm）	Cross Section Area of Conductor （mm2）
3.6/6kV、6/10kV、8.7/15kV、12/20kV	18-44	25-800
18/30kV、19/33kV、21/35kV、26/35kV	26-49	50-630

It is applicable to connect extruding MV cables each other, suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.
