PLC (Planar Lightwave Circuit)Splitter

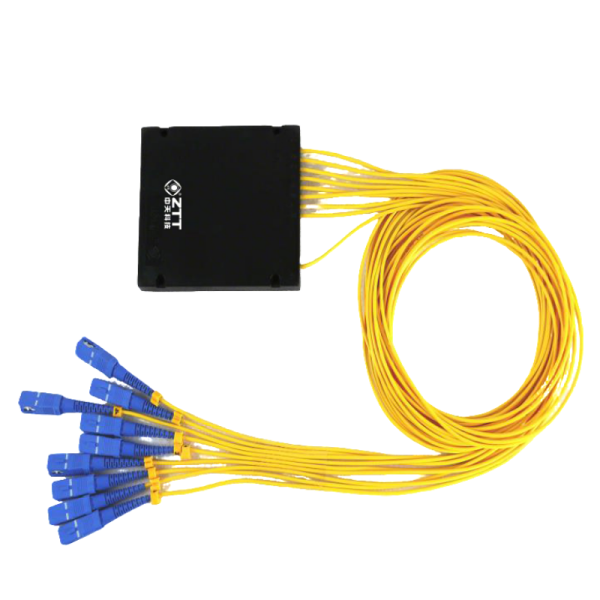

Cassette type Splitter, Blade package type Splitter, Micro-modular type Splitter, Tray assembly type Splitter can be collectively referred to as PLC splitter.

Product Description

PLC (Planar Lightwave Circuit)Splitter is an integrated waveguide optical power device based on quartz substrate, which realizes the function of optical signal shunt. It has the advantages of uniform splitting and insensitive loss to the transmitted optical wavelength.

Product Advantages

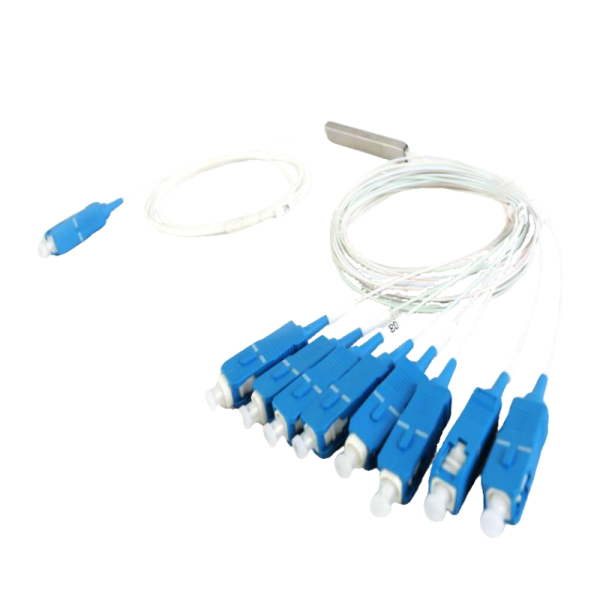

Micro-modular type Splitter:
Low insertion loss, low polarization loss;High uniformity, high reliability;Compact structure, convenient installation, elegant appearance;Input and output optical fibers: 0.9mm;It can protect the optical fiber well, and it is convenient to add the connector.
Cassette type Splitter:
Modular design, compact structure, beautiful appearance and easy engineering application;Good spectral uniformity;

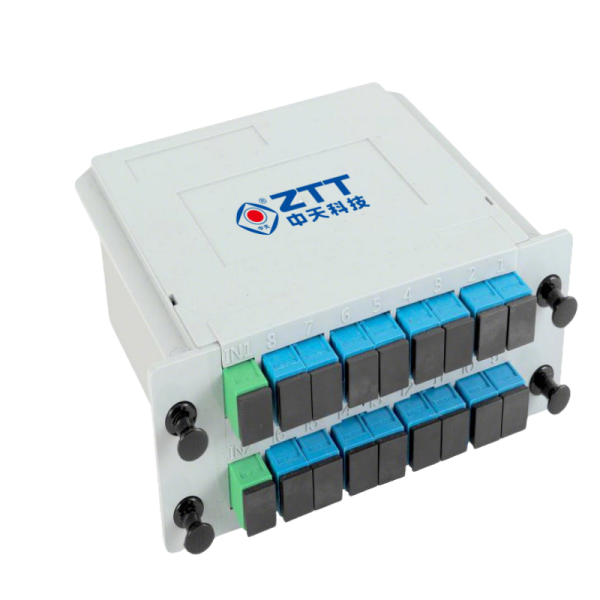

Blade package type Splitter:
Set optical splitter and adapter as one, the arrangement in the box is tight, not easy to damage;It greatly facilitates engineering construction and reduces the damage caused by improper construction or storage of pigtail.Modular design, good interchangeability.

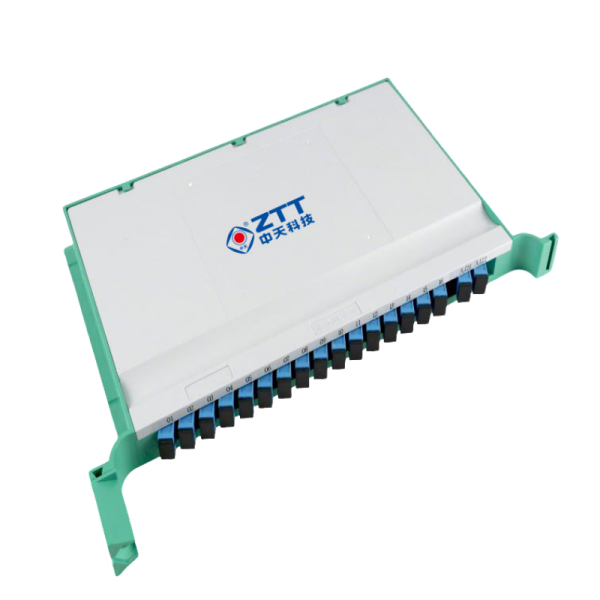

Tray assembly type Splitter:
The arrangement in the cartridge is tight and not easy to damage;Modular design, better stability, can be easily expanded through the disc superposition.

Type	1X2	1X4	1X8	1X16	1X32	1X64
Channel wavelength(nm)	1260-1650
Insertion loss(dB)	≤4.4	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5
Loss Uniformity (dB)	≤0.6	≤0.8	≤1.0	≤1.4	≤1.6	≤2.0
Return loss (dB)	≥50
Polarization	≤0.2	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5
dependent loss(dB)
Directivity(dB)	≥55
Operating temperature (℃)	-40~+85
Storage temperature(℃)	-40~+85
Note 1: The above insertion loss values are measured at room temperature, including connector loss;
Note 2: The insertion loss of the PLC splitter including the adapter should be added 0.2dB to the above insertion loss;
Note 3: The insertion loss of PLC splitter without connector should be subtracted 0.2dB from the above insertion loss.

Micro-modular type Splitter:
Suitable for space is relatively tight occasions
Cassette type Splitter:
No need for welding, suitable for network box, optical distribution box, etc.
Blade package type Splitter:
The optical fiber adapter is provided for use with built-in boxes such as optical splitter box, optical cable junction box, and ODF frame.
Tray assembly type Splitter:
Often used in optical cable junction box and optical fiber distribution frame, the installation width of the tray can be adjusted to meet the installation needs of different sizes.
