Optical Distribution Frame (ODF)

Optical Distribution Frame (ODF) is applicable to the central office, optical node, and optical access points in the user’s optical fiber access network project, to complete the introduction, fixing, stripping protection of optical cables, welding and protection of optical fibers, storage and management of pigtails, and fixed connection and cross-connection of optical fibers.

Product Description

Optical Distribution Frame (ODF) is a wiring connection device between optical cable and optical communication equipment or between optical communication equipment. It is used for the formation and distribution of the main optical cable in the office end of the optical fiber communication system, and can easily realize the connection, distribution and scheduling of optical fiber lines for the transmission network room, convergence room, and access room.

Product Advantages

Fully enclosed structure, single side operation
The frame is made of high-quality cold-rolled steel plate, with a whole welded structure, high strength and good rigidity;
Surface coating using electrostatic spraying process, corrosion resistance, elegantappearance;
Adopt modular structure, which can be flexibly configured and installed according to different requirements;
Adopt 12-core fusion wiring integration module, each connecting module can be pulled out separately, easy to operate.

Model	H×W×D(mm)	Distribution capacity	Storage Unit	Remark

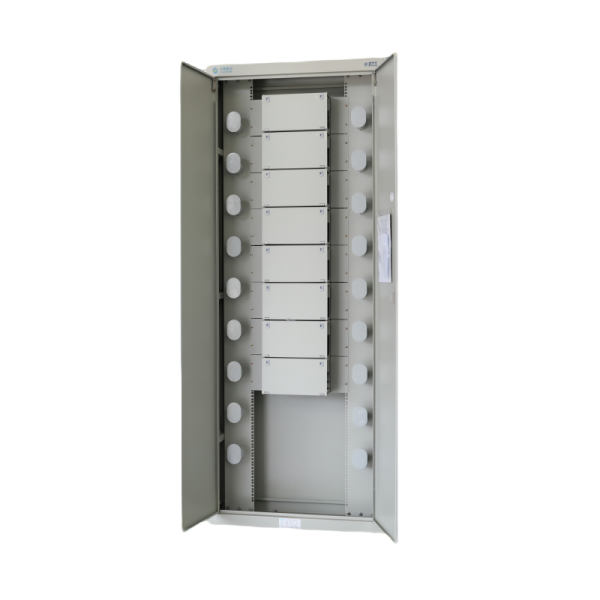

GPX02-600Y1	2000×600×300	360	3	Max 30 pcs 12 core integrated trays

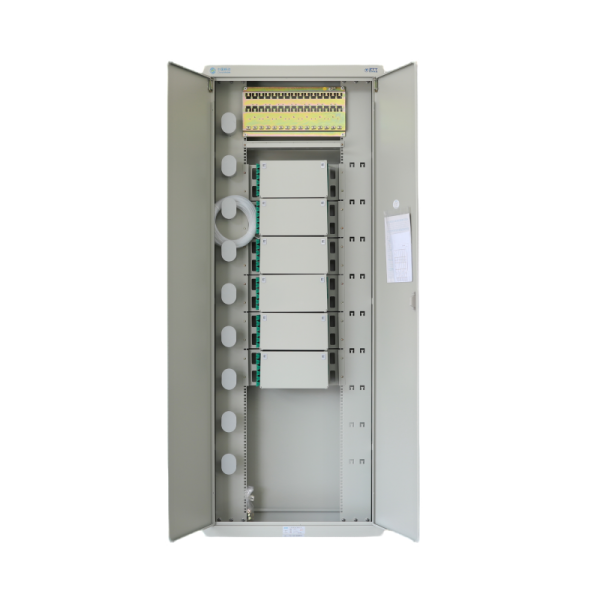

GPX02-600Y2	2200×600×300	504	3	Max 42 pcs 12 core integrated trays
GPX02-600Y3	2600×600×300	576	4	Max 48 pcs 12 core integrated trays
GPX02-840Y1	2000×840×300	576	/	Max 48 pcs 12 core integrated trays
GPX02-840Y2	2200×840×300	720	/	Max 60 pcs 12 core integrated trays
GPX02-840Y3	2600×840×300	864	/	Max 72 pcs 12 core integrated trays

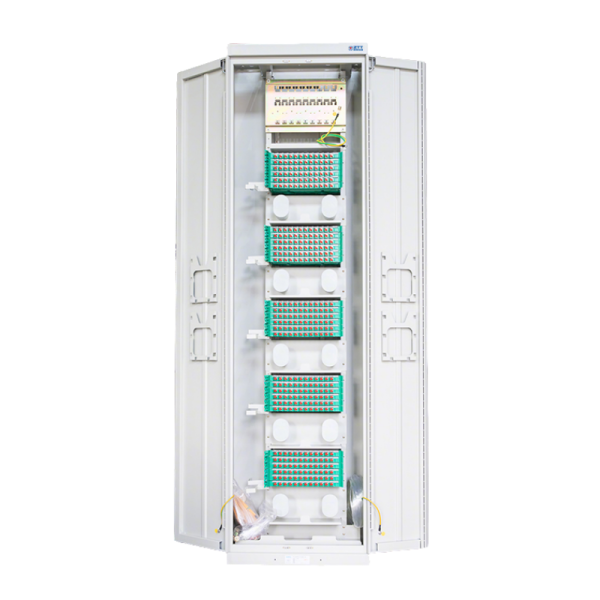

GPX03-840Y1	2000×840×300	504	2	Max 7 pcs 72 core ODF module
GPX03-840Y2	2200×840×300	576	2	Max 8 pcs 72 core ODF module
GPX03-840Y3	2600×840×300	720	2	Max 10 pcs 72 core ODF module

It is suitable for all optical access points in central office, optical junction and user optical fiber access network engineering, to provide secure and reliable routing for connection, distribution and scheduling of optical network devices.
