Optical Termination Box

Optical Termination Box is applied to joint the optical cable and pigtails. It can realize the functions of optical fiber’s welding, storage and line dispatching, etc.

Product Description

Optical Termination Box is made of high quality cold rolled steel plate or galvanized steel plate. The surface of the box is dustproof, corrosion resistance and aging resistance by electrostatic spraying process, and the safety performance is high.

Product Advantages

Compact structure, light weight, mechanical design structure in any operation, replacement, storage and transportation and other cases are reliable, equipped with optical cable fixing device, welding disc, through the wire ring;
Provide space for the placement of optical cable terminals and storage of the remaining optical fibers for easy installation and operation.
The optical cable metal component is insulated with the optical cable end housing, and can be easily led out and grounded;

Type	GPF02-6/12/24R	GPF01-12/24ZR	ZTT-GPF-C01
Material	Cold-rolled steel	Cold-rolled steel	Cold-rolled steel
Capacity	6/12/24	12/24	Can be customized
Size(*WDH*)	30013088mm	Can be customized Normally 1U: 48325044mm	Can be customized Normally 1U: 48328044mm

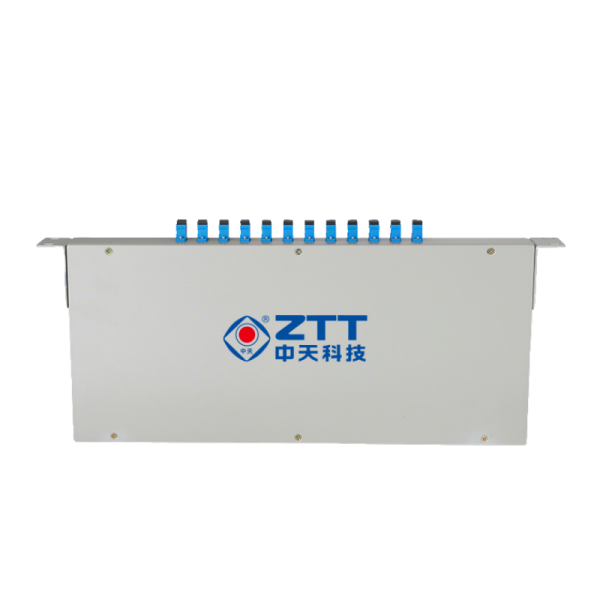

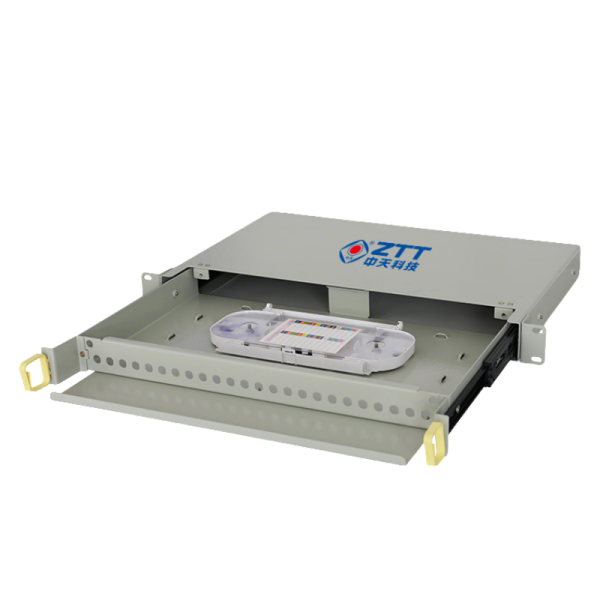

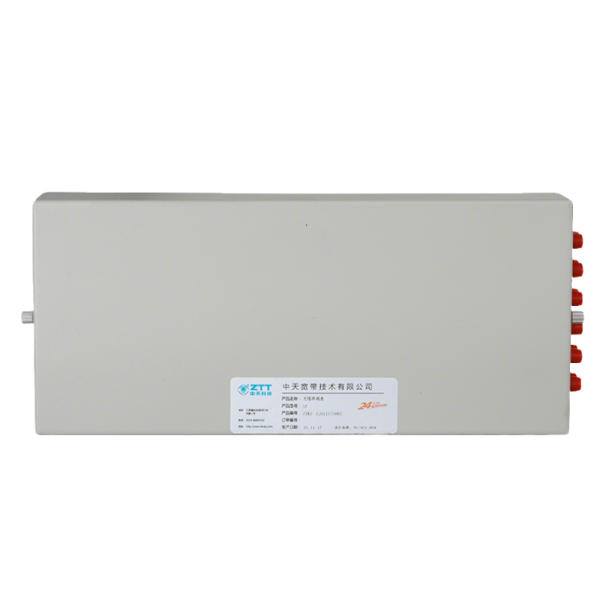

Operation method	Wall-mounted	Rack Type	Sliding type
Installation method	Rack-mounted	Rack-mounted	Rack-mounted
Configuration	SC/LC/FC/ST adapter	SC/LC/FC/ST adapter	SC/LC/FC/ST adapter
