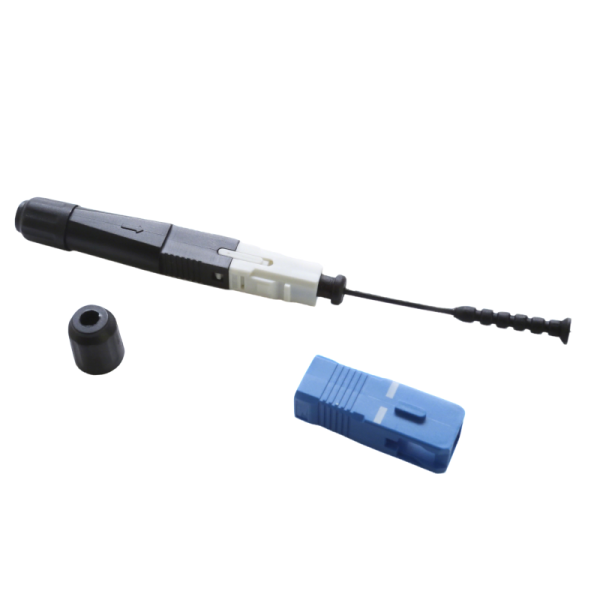

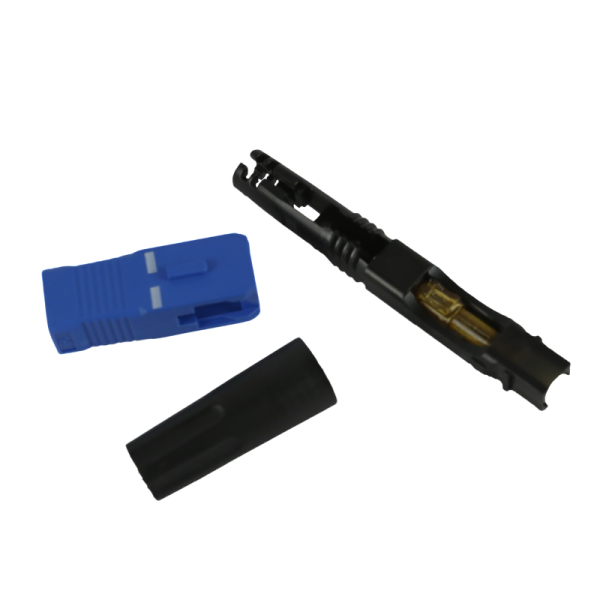

Field Assembly Connector is a product that can move the manufacturing process of the connector to the site and complete it quickly.
| No. | Item | Content | Offered |
| 1 | Application scope | Cable | Fiber: G.657; Cable：(K)FRP 2.0×3.0mm drop cable; |
| 2 | Type | SC/UPC，SC/APC | |
| Single mode | |||
| 3 | Applicable mode | ||
| 4 | Temperature | Usage temperature(℃) | -40℃～+75℃ |
| 5 | Optical property | Insertion loss（dB） | ≤0.3dB |
| 6 | Return loss（dB） | ≥50dB | |
| 7 | Tensile strength | ≥20N（2 min） | |
| 8 | Average operation time（S）
（Not including fiber peeling and cleaning） |
≤30s | |
| 9 | Others | 1.Operation steps（1,2,3）. | Fast operation, no need special auxiliary tools. Operation steps：
1. Use wire stripper to peel off cable’s sheath; 2.Put the stripped cable into the connector chucking appliance; use miller pliers to peel the coating of the spare fiber; 3. Cut fiber with cutting knife; 4. Put the cut-off fiber into connector, fasten the hook and put on the SC cover. The common auxiliary tools: miller pliers, diagonal pliers. |
| 2.Special auxiliary tools supplying | |||
| methods: charge/free | |||
| 10 | Operation training：free/charge | Free | |
| 11 | Special tools：free/charge | / | |
It is suitable for the end of the household optical cable in the corridor and the user’s room in the FTTx deployment.At the same time, it is suitable for the jumper transformation of the equipment room and ODF.
