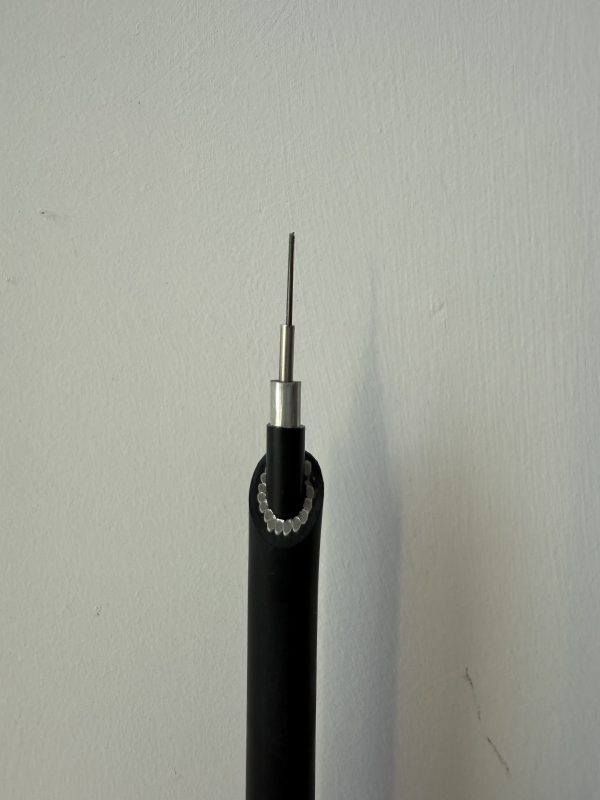

Underwater Cable

The underwater cable is rodent-proof, with excellent mechanical property, suitable for direct buried and underwater installation

Product Description

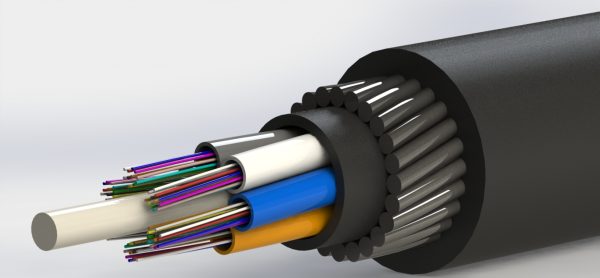

The underwater fiber optic cable employs a steel wire armored structure. Single-mode or multi-mode optical fibers are housed within loose tubes made of high-modulus polyester material. The tubes are filled with a water-blocking compound. At the core’s center is a central strength member. The loose tubes (and possible filler rods) are stranded around this central member to form a compact, circular cable core. Any interstitial spaces within the core are filled with water-blocking filling compound. Steel wire armoring is applied over the inner sheath, and the cable is completed by extruding an outer polyethylene (PE) sheath.

Product Advantages

The loose tube material offers excellent hydrolysis resistance and high strength. Filled with a special flooding compound, it provides critical protection for the fibers.
Multiple stranded steel wires impart extremely high tensile and crush resistance to the cable, enabling it to withstand harsh conditions and ensure reliable optical signal transmission.
Effectively resists rodent bites and provides good ballistic protection.
Meets application requirements for direct burial on slopes, underwater installation, and similar demanding environments.

Fiber count	Nom. Cable diameter （mm）	Cable weight ±15% (kg/km)	Bending radius（mm）		Tensile load Long-term/short-term (N)	Crush load Long-term/short-term (N/100mm)
Fiber count	Nom. Cable diameter （mm）	Cable weight ±15% (kg/km)	static	dynamic	Tensile load Long-term/short-term (N)	Crush load Long-term/short-term (N/100mm)
2-30	10.5	484	15D	30D	4000/10000	3000/5000
32-36	11	535	15D	30D	4000/10000	3000/5000
38-72	11.3	543	15D	30D	4000/10000	3000/5000
74-84	12.7	691	15D	30D	4000/10000	3000/5000
86-96	14.3	753	15D	30D	4000/10000	3000/5000
98-108	14.3	812	15D	30D	4000/10000	3000/5000
110-120	15.3	971	15D	30D	4000/10000	3000/5000
122-132	16.4	1010	15D	30D	4000/10000	3000/5000
134-144	17.4	1218	15D	30D	4000/10000	3000/5000
146-216	17.5	1221	15D	30D	4000/10000	3000/5000
218-240	18.3	1258	15D	30D	4000/10000	3000/5000
242-264	19	1346	15D	30D	4000/10000	3000/5000
266-288	20.3	1543	15D	30D	4000/10000	3000/5000
360	23.6	1927	15D	30D	4000/10000	3000/5000

Installation method: Direct buried, underwater installation.
Operating temperature:
Storage and operation: -40℃ to +70℃; Laying: -15℃ to +60℃.
Bending radius: Static: 15 times the cable diameter; Dynamic: 30 times cable diameter.
