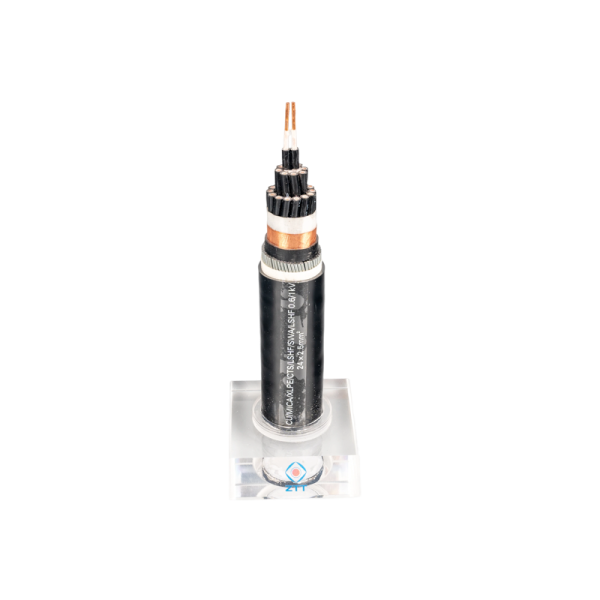

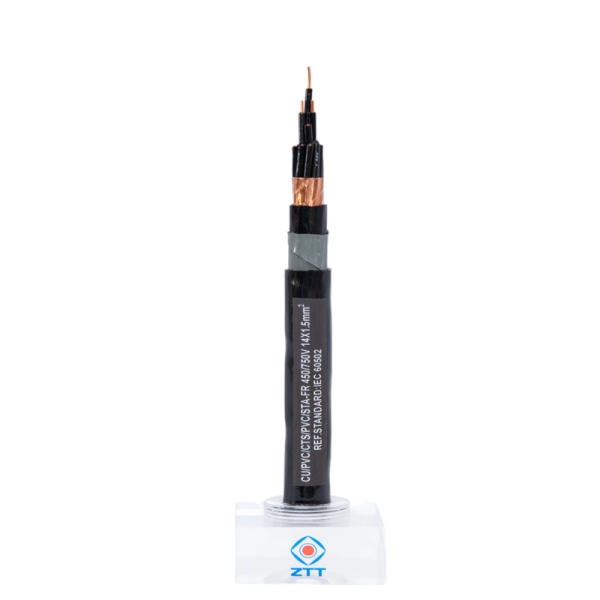

Screened Armored Cable

Screened armored cable combines the advantages of screen and armor, It can not only resist interference and electromagnetic radiation, but also has the characteristics of durable and withstand external force.

STANDARD TAXONOMY

Cables are offered accords with different standards, IEC 60227, IEC 60502-1, GB/T9330, AS/NZS 5000.3
UV Resistance to UL 1581
Flame Retardant Cat.A,B,C to IEC 60332-3-22/23/24
Fire Resistant to IEC 60331
Low Smoke to IEC 61034-1&2, Halogen Free to IEC 60754-1/2

CONSTRUCTION

Conductor: Copper
Insulation: Polyvinyl Chloride(PVC), Cross-linked polyethylene(XLPE)
Filler: Polypropylene(PP)
Wrapping: Polyvinyl Chloride(PVC), Polyethylene(PE)
Screen: Copper Wire, Copper Tape
Armor: Steel Wire, Steel Tape
Sheath: Polyvinyl Chloride(PVC), Polyethylene(PE), Low Smoke Zero Halogen compound(LSZH)

APPLICATION

Steel Wire Armor: It is appropriate for use in mobile equipment, electric tools, overhead cable, and short-distance laying where frequent bending or movement is required.
Steel Tape Armor : It is suitable for power transmission, fixed installation, and direct burial applications where it needs to withstand significant mechanical tension and pressure.

CHARACTERISTCS

PVC insulation:

Cable conductor: Max long-term temp 70℃, max short-circuit temp 160℃ (≤5s).
Cable layingtemp:≥0°C
Cable bending radius: Unarmored cables or flexible cables with screen≥6×OD, armored cables or copper tape screen cables ≥12×OD

XLPE insulation:

Cable conductor: max long-term temp 90℃, max short-circuit temp 250℃ (≤5s).
Cable laying: ambient temp ≥0°C
Cable bending radius: Unarmored cables or flexible cables with screen≥8×OD, armored cables or copper tape screen cables ≥12×OD

Parameter of some products

Type: CU/XLPE/PVC 450/750V

No. of cores×nominal cross section (mm2)	Insulator thickness (mm)	Outer diameter (mm)	Maximum DC resistance of conductor at 20℃ (Ω/km)
No. of cores×nominal cross section (mm2)	Insulator thickness (mm)	Outer diameter (mm)	Copper	Aluminum
2×0.75	0.6	1.2	7.1	24.5
2×1	0.6	1.2	7.3	18.1
2×1.5	0.6	1.2	7.9	12.1
2×2.5	0.7	1.2	9.1	7.41
2×4	0.7	1.2	10.1	4.61
2×6	0.7	1.2	11.1	3.08
3×0.75	0.6	1.2	7.5	24.5
3×1	0.6	1.2	7.7	18.1
3×1.5	0.6	1.2	8.3	12.1
3×2.5	0.7	1.2	9.6	7.41
3×4	0.7	1.2	10.7	4.61
3×6	0.7	1.2	11.8	3.08
4×0.75	0.6	1.2	8	24.5
4×1	0.6	1.2	8.3	18.1

Note: The above is only part of the product specifications and technical parameters, if you need detailed parameters, please contact our sales manager.
