The maximum temperature of ordinary optical fibers is generally not allowed to exceed +85℃.If the temperature exceeds normal usage for a long time，the fiber coating will deteriorate，which has a bad influence on Fiber strength and service life.

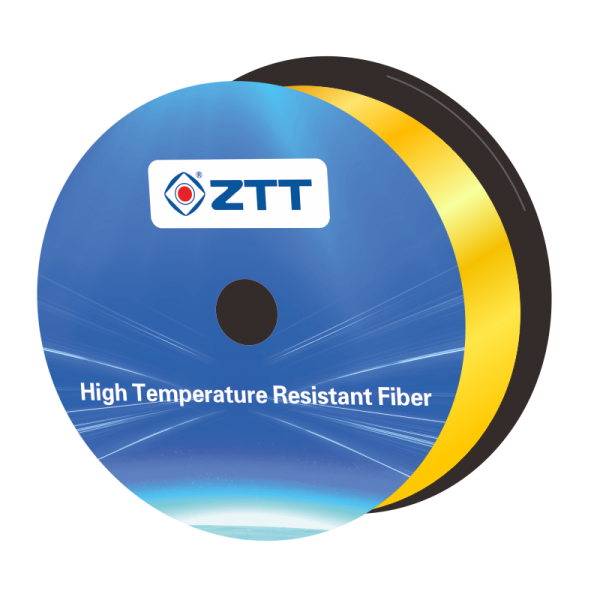

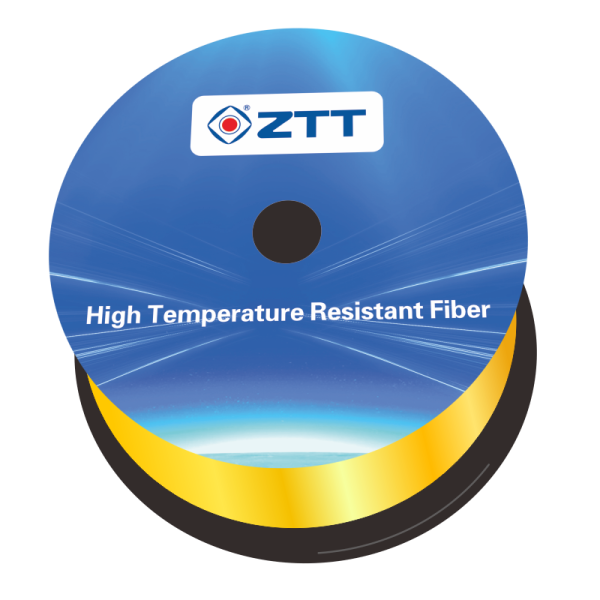

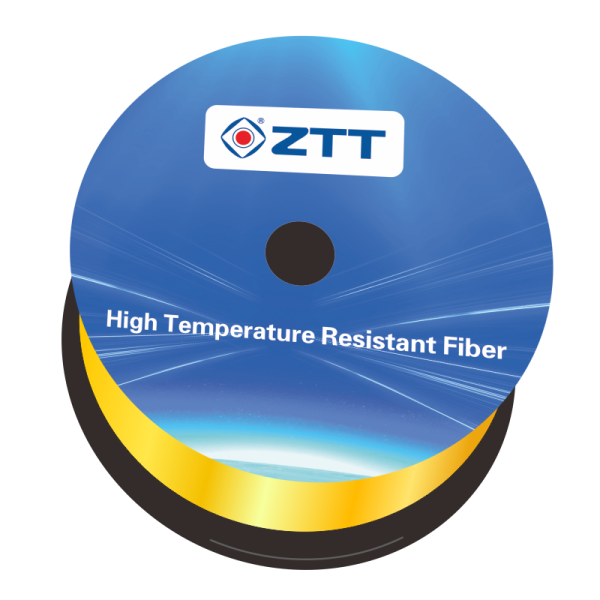

We can provide 150℃ and 300℃ resistant fiber，which could be used for high temperature communication and sensing application. The High temperature resistance is promoted by using special coating material and special design of coating die and curing process. The temperature resistant polyester or polyimide fiber can meet the performance requirements of 150℃ and 300℃.
High Temperature Resistant Single Mode fiber
| MTSM | HTSM | |
| Mode Field Diameter@1310nm（μm） | 9.2±0.4 |
9.2±0.4 |
|
Cable cutoff wavelength（nm） |
≤1260 | ≤1260 |
| Attenuation@1310nm（dB/km） | ≤0.4 |
≤1 |
|
Attenuation@1550nm（dB/km） |
≤0.25 | ≤0.8 |
| Cladding diameter（μm） | 125±1 |
125±1 |
|
Coating diameter（μm） |
245±10 | 160±10 |
| Cladding Non-circularity（%） | ≤1 |
≤1 |
|
Core/clad Concentricity Error（μm） |
≤0.8 | ≤0.8 |
| Proof tension（kpsi） | 100 |
100 |
|
Coating material |
Temperature resistant polyester | polyimide |
| environmental temperature（℃） | Short term：200
Long term：150 |
Short term：350 Long term：300 |
*MTSM: Moderate Temperature Single Mode Fiber(150℃~200℃);
*HTSF: High Temperature Single Mode Fiber（300℃~350℃）;
*Coating and cladding diameter can be customized according to customer requirements.
Temperature Resistant Multimode Fiber
| MTMM | HTMM) | |
| Attenuation@850nm（dB/km） | ≤3.0 |
≤4.0 |
|
Attenuation@1300nm（dB/km） |
≤1.0 | ≤2.0 |
| Attenuation@850nm（MHz∙km） | ≥150 |
≥150 |
|
Attenuation@1300nm（MHz∙km） |
≥300 | ≥300 |
| Core diameter（μm） | 50±2.5 |
50±3 |
|
Cladding diameter（μm） |
125±1 | 125±2 |
| Coating diameter（μm） | 245±10 |
160±10 |
|
Cladding Non-circularity（%） |
≤1 | ≤1 |
| Core/clad Concentricity Error（μm） | ≤1.5 |
≤1.5 |
|
Proof tension（kpsi） |
100 | 100 |
| Coating material | Temperature resistant polyester |
Polyimide |
|
environmental temperature（℃） |
Short term：200
Long term：150 |
Short term：350 Long term：300 |
*MTMM: Moderate Temperature Multimode Fiber(150℃~200℃);
*HTMM: High Temperature Multimode Fiber（300℃~350℃）
Applications：
