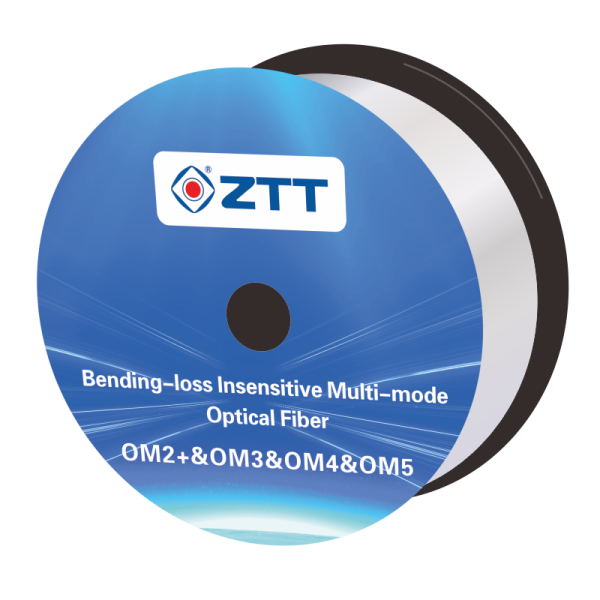

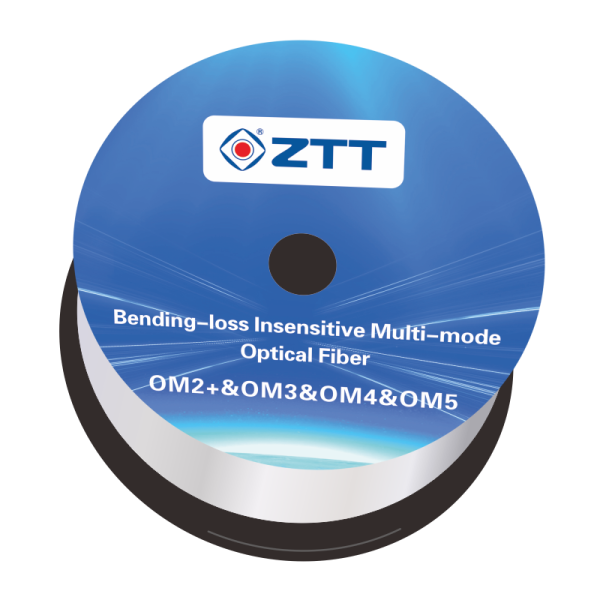

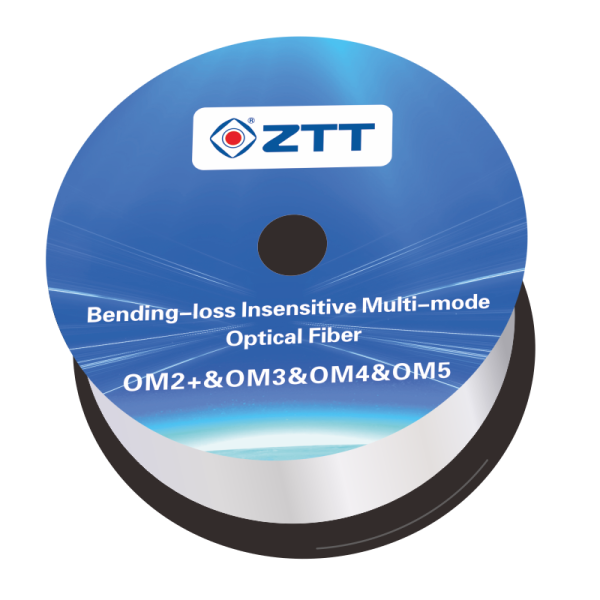

ZTT multi-mode optical fiber adopts MCVD technology with precise control of refractive index and provides customer-made multi-mode optical fiber. The conventional type is OM2+, OM3, OM4 and the customers can choose the type according to the use requirement. ZTT multi-mode optical fiber supports 10Gb/s transmission system; the transmission distance is in the range of 300—500m at 850nm. The fiber is designed for low-cost 850nm vertical cavity surface emitting laser as the light source of Gigabit Ethernet with good properties, which provides the solutions for the low-cost and high bandwidth.
Product Details
| Description | Specification | |
| Attenuation (dB/km) | 850 nm | ≤2.5 |
| 1300 nm | ≤0.7 | |
| Attenuation inhomogeneity (dB/km) | 850 nm | ≤0.08 |
| Attenuation Point Discontinuity (dB) | 850 nm | ≤0.1 |
| Numerical aperture | 0.2±0.015 | |
| Fiber Curl Radius (m) | ≥4 | |
| Fiber Core Diameter (um) | 50±2.5 | |
| Core Non-circularity (%) | ≤5.0 | |
| Cladding Diameter (um) | 125±1 | |
| Core/clad Concentricity Error (um) | ≤1 | |
| Cladding Non-circularity (%) | ≤1 | |
| Coating Diameter (um) | 245±10 | |
| Clad / coating Concentricity Error (um) | ≤8.0 | |
| Coating Non-circularity (%) | ≤5 | |
| Proof Stress (%) | 1 | |
| Tensile strength test (GPa) | 15% Weber fracture probability | 2.76 |
| 50% Weber fracture probability | 3.45 | |
| Fatigue Resistance Parameter(Nd) | ≥20 | |
| Peak Coating Strip Force (N) | [1.3,8.9] | |
| Temperature Cycling Induced Attenuation (dB/km) | 0.05 | |
| Damp Heat Aging Induced Attenuation (dB/km) | 0.05 | |
| Heat Aging Induced Attenuation (dB/km) | 0.05 | |
| Water Immersion Induced Attenuation (dB/km) | 0.05 | |
Applications
Characteristics
| System Link Length：850nm | Type | 1GB/S | 10GB/S | 40&100GB/S |
| OM2+ | 700m | 150m | / | |
| OM3 | 950m | 300m | 100m | |
| OM4 | 1100m | 500m | 150m | |
| Transmission length | Bandwidth | OM2+ | OM3 | OM4 |
| OFL BW@850 | ≥700 MHZ*KM | ≥1500 MHZ*KM | ≥3500 MHZ*KM | |
| OFL BW@1300 | ≥500 MHZ*KM | ≥500 MHZ*KM | ≥500 MHZ*KM | |
| EMB BW@850 | ≥950 MHZ*KM | ≥2000 MHZ*KM | ≥4700 MHZ*KM |
