20-port Sector Antenna,
FDD:2×690-960&4×1695-2690MHz,65Deg,17&18dBi,
TDD:4×2300-2690MHz,90Deg,16dBi,Integrated RET
|
Description |
20-port Sector Antenna,FDD:2×690-960&4×1695-2690MHz,65Deg,17&18dBi
TDD:4×3300-3800MHz,90Deg,16dBi,Integrated RET |
|||||||||||||
| ZTT Product Code |
HBH488J651718 |
|||||||||||||
|
Frequency Range |
MHz | FDD:2×690-960(R1/R2) | ||||||||||||
| Frequency Band | MHz | 690-806 | 790-894 |
880-960 |
||||||||||
|
Gain Over All Tilts |
dBi | 15.4±0.6 | 15.8±0.5 | 16.2±0.3 | ||||||||||
| Gain by Tilt Average Mid | dBi | 15.4 | 15.8 |
16.3 |
||||||||||
|
Efficiency Average |
% | 82 | 79 | 78 | ||||||||||
| Horizontal 3dB Beam Width | Deg | 63±5 | 61±4 |
58±5 |
||||||||||
|
Vertical 3dB Beam Width |
Deg | 11.2±1.1 | 10.1±0.8 | 9.0±0.6 | ||||||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥23 | ≥24 | ≥25 | ||||||||||
| Cross Polar Ratio 0Deg | dB |
≥15 |
||||||||||||
|
Electrical Downtilt |
Deg | 2-12,Continuously adjustable | ||||||||||||
| VSWR | / |
≤1.5 |
||||||||||||
|
Intraband Isolation |
dB | ≥25 | ||||||||||||
| Interband Isolation | dB |
≥25 |
||||||||||||
|
Intermodulation IM3 |
dBc | ≤-153(2×43 dBm carrier) | ||||||||||||
| Max. Power Per Port | Watt |
250(at 50℃ ambient temperature) |
||||||||||||
|
Frequency Range |
MHz | FDD:4×1695-2690(Y1/Y2/Y3/Y4) | ||||||||||||
| Frequency Band | MHz | 1695-1990 | 1920-2200 | 2300-2500 |
2490-2690 |
|||||||||
|
Gain Over All Tilts |
dBi | 16.2±0.6 | 16.4±0.7 | 16.9±0.5 | 17.3±0.9 | |||||||||
| Gain by Tilt Average Mid | dBi | 16.3 | 16.5 | 16.9 |
17.2 |
|||||||||
|
Efficiency Average |
% | 81 | 79 | 79 | 78 | |||||||||
| Horizontal 3dB Beam Width | Deg | 66±4 | 61±4 | 57±6 |
63±6 |
|||||||||
|
Vertical 3dB Beam Width |
Deg | 8.4±0.6 | 7.6±0.6 | 6.5±0.3 | 6.2±0.4 | |||||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥24 | ||||||||||||
| Cross Polar Ratio 0Deg | dB |
≥15 |
||||||||||||
|
Electrical Downtilt |
Deg | 2-12,Continuously adjustable | ||||||||||||
| VSWR | / |
≤1.5 |
||||||||||||
|
Intraband Isolation |
dB | ≥25 | ||||||||||||
| Interband Isolation | dB |
≥25 |
||||||||||||
|
Intermodulation IM3 |
dBc | ≤-153(2×43 dBc carrier) | ||||||||||||
| Max. Power Per Port | Watt |
250(at 50℃ ambient temperature) |
||||||||||||
|
Electrical Specifications |
||||||||||||||
| Frequency Range | MHz |
TDD:4×3300-3800(Bottom:P1) |
||||||||||||
|
Frequency Band |
MHz | 3300-3600 | 3600-3800 | |||||||||||
| Coupling Factor between
Calibration Port and Each Antenna Port |
dB |
-26±2 |
||||||||||||
|
Max.Amplitude Tolerance from Calibration Port to Input Ports |
dB | ≤0.9 | ||||||||||||
| Max.Phase Tolerance from
Calibration Port to Input Ports |
Deg |
≤9.0 |
||||||||||||
|
Isolation between same Polarization ports |
dB |
≥20 |
||||||||||||
| Isolation between different Polarization ports | dB |
≥23 |
||||||||||||
|
VSWR |
/ |
≤1.5 |
||||||||||||
|
Electrical Downtilt |
Deg |
2-12,Continuously adjustable |
||||||||||||
|
Maximum Power |
Watt |
50(at 50℃ ambient temperature) |
||||||||||||
|
Single Column Beam |
Gain Over All Tilts |
dBi | 15.0±0.5 | 15.2±0.6 | ||||||||||
| Gain by Tilt Average Mid | dBi | 15.1 |
15.3 |
|||||||||||
|
Efficiency Average |
% | 66 | 64 | |||||||||||
| Horizontal 3dB Beam Width | Deg | 92±10 |
83±9 |
|||||||||||
|
Vertical 3dB Beam Width |
Deg | 6.8±0.3 | 6.4±0.3 | |||||||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥23 | ||||||||||||
| Cross-Polar Ratio 0Deg | dB |
≥15 |
||||||||||||
| Broadcast Beam |
Gain Over All Tilts |
Deg | 16.1±0.6 | 16.3±0.8 | ||||||||||
| Gain by Tilt Average Mid | dBi | 16.2 |
16.3 |
|||||||||||
|
Horizontal 3dB Beam Width |
Deg | 64±5 | 62±6 | |||||||||||
| Vertical 3dB Beam Width | Deg | 6.8±0.3 |
6.2±0.3 |
|||||||||||
|
1st Upper Side Lobe Suppression Above Main Beam |
dB | ≥15 | ||||||||||||
| Front to Back Ratio
at 180Deg ±30Deg |
dB |
≥23 |
||||||||||||
|
Cross-Polar Ratio 0Deg |
dB | ≥15 | ||||||||||||
| Service Beam | 0°Beam Gain Over All Tilts | dBi | 20.0±0.6 |
20.3±0.8 |
||||||||||
|
0°Beam Gain by Tilt Average Mid |
dBi | 20.1 | 20.4 | |||||||||||
| 0°Beam Horizontal 3dB Beam Width | Deg | 26±2 |
24±2 |
|||||||||||
|
0°Beam Front to Back Ratio |
dB | ≥28 | ||||||||||||
| 0°Beam Cross-Polar Ratio 0Deg | dB |
≥20 |
||||||||||||
|
Mechanical Specifications |
||||||||||||||

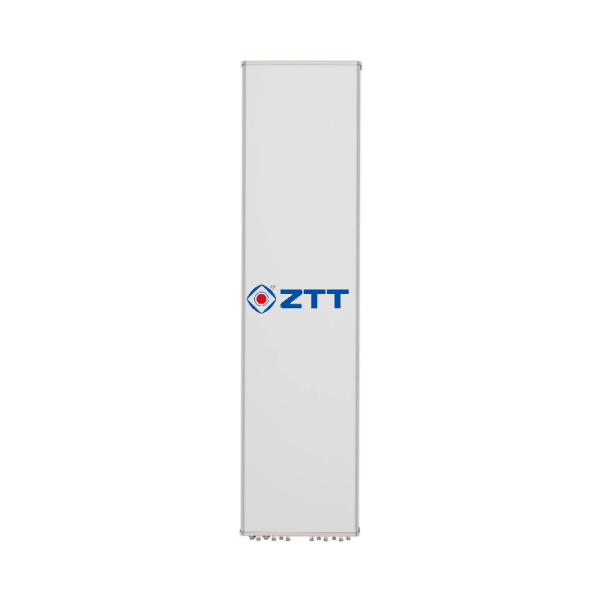

| Antenna Dimensions | mm |
2360×498×186 |
||||||||||||
|
Antenna Net Weight |
kg | 35.8 | ||||||||||||
| Packing Dimensions | mm |
2565×550×258 |
||||||||||||
|
Antenna Gross Weight |
kg | 51.3 | ||||||||||||

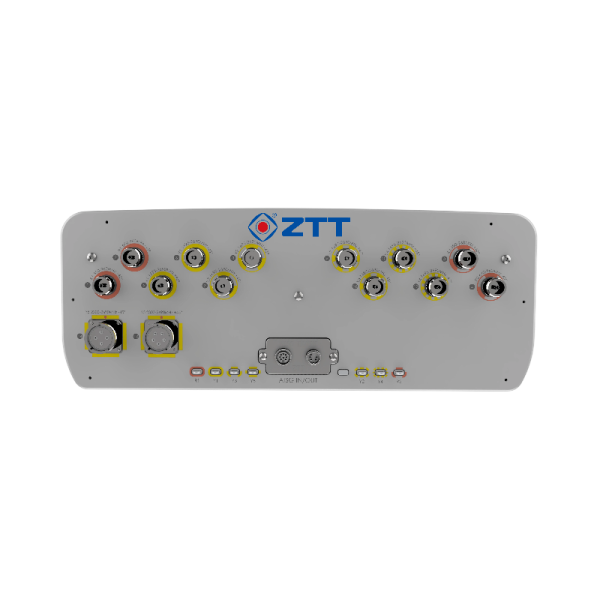

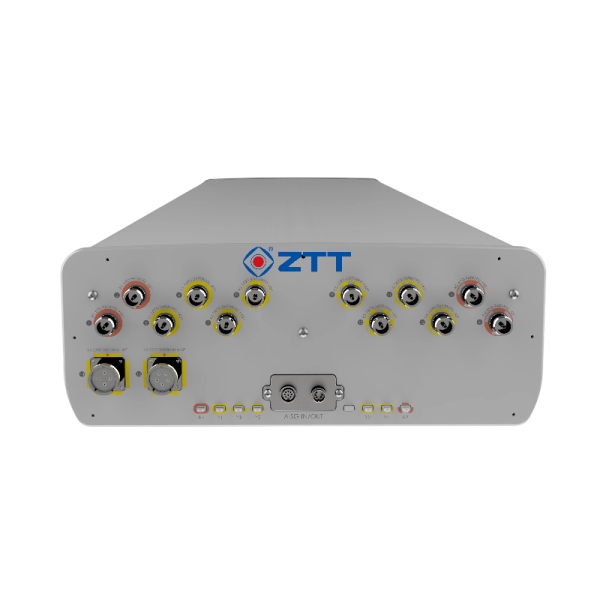

| Connector Type | / |
12×4.3-10 Female, 1×MQ4&MQ5 |
||||||||||||
|
Connector Position |
/ | Bottom | ||||||||||||
| Radiator Material | / |
Low loss circuit broad & Aluminum |
||||||||||||
|
Radome Material / Color |
/ | Fiberglass / Light Grey RAL7035 | ||||||||||||
| Reflector Material | / |
Aluminum |
||||||||||||
|
Storage Temperature |
°C | -40 to +65 | ||||||||||||
| Operating Temperature | °C |
-40 to +65 |
||||||||||||
|
Humidity |
/ | 5% to 95% | ||||||||||||
| Max. operational Wind Speed | km/h |
200 |
||||||||||||
|
Wind Load @Rated Wind Front |
N | 2429 | ||||||||||||
| Wind Load @Rated Wind Side | N |
388 |
||||||||||||
|
Wind Load @Rated Wind Rear |
N | 2722 | ||||||||||||
| Lightning Protection | / |
DC ground |
||||||||||||
|
Accessories |
||||||||||||||
| Model | / |
HZJ38N |
||||||||||||
|
Weight |
Kg | 7.0 | ||||||||||||
| Downtilt Kit (mechanical) | Deg |
0-12 |
||||||||||||
|
Mounting Accessories (clamp) |
/ | Included with antenna | ||||||||||||
| Mounting Pipe Diameter | mm |
50-115 |
||||||||||||
|
Internal RET Specifications |
||||||||||||||
| RCU (remote control unit) | / |
Replaceable RET (can be exchangable without exchanging antenna) |
||||||||||||
|
AISG2.0 /3GPP |
||||||||||||||
|
Input Voltage Range |
V | 10-30 DC | ||||||||||||
| Power Consumption | W |
< 10 (motor activated , single RET) < 2 (stand by, single RET) |
||||||||||||
|
Adjustment Time (full range) |
s | < 120 (typically, depending on antenna type) | ||||||||||||
| RET Connector | / |
1 pair of AISG 5 pin male & female |
||||||||||||
|
Pin Assignment According AISG |
/ | 5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0 | ||||||||||||
| Lightning Protection | kA |
5 (8/20 μs differential mode), 8 (8/20 μs common mode) |
||||||||||||
|

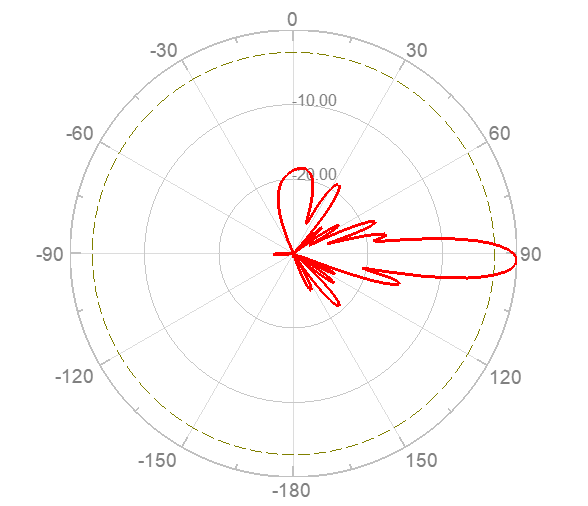

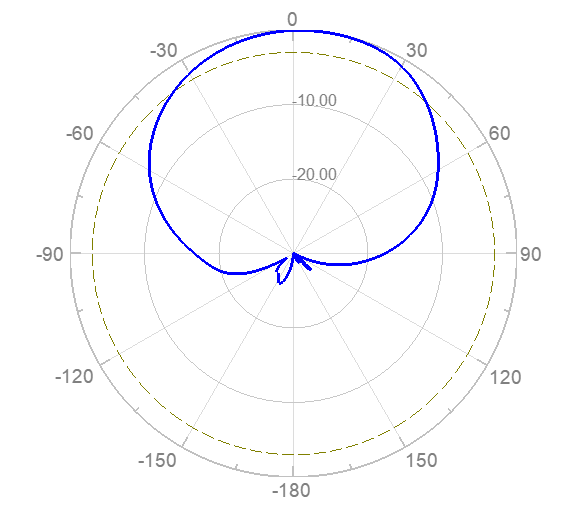

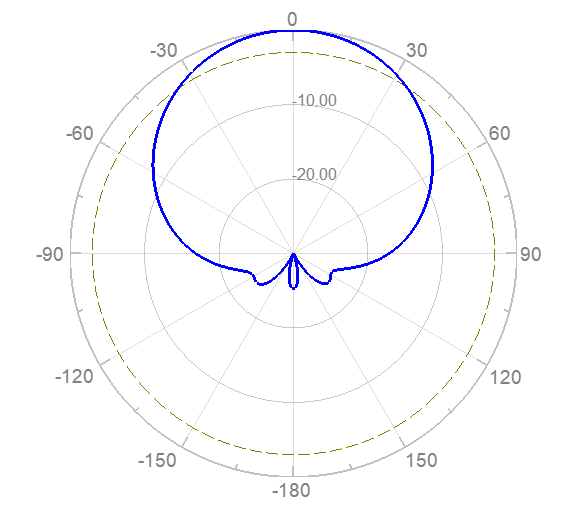

Reference Pattern |
||||||||||||||
|
FDD:690-960MHz |
||||||||||||||
|

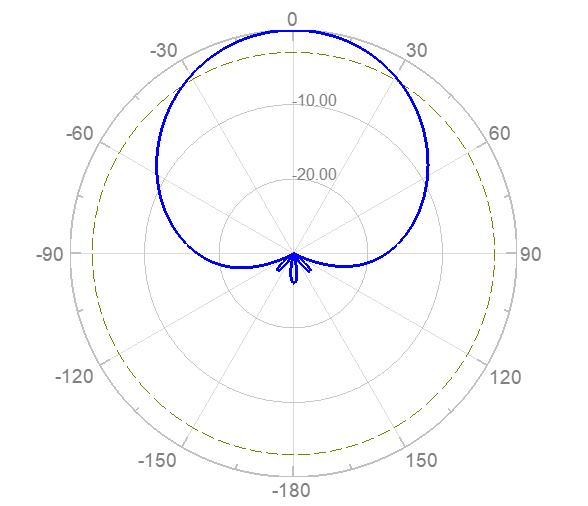

Horizontal Pattern |

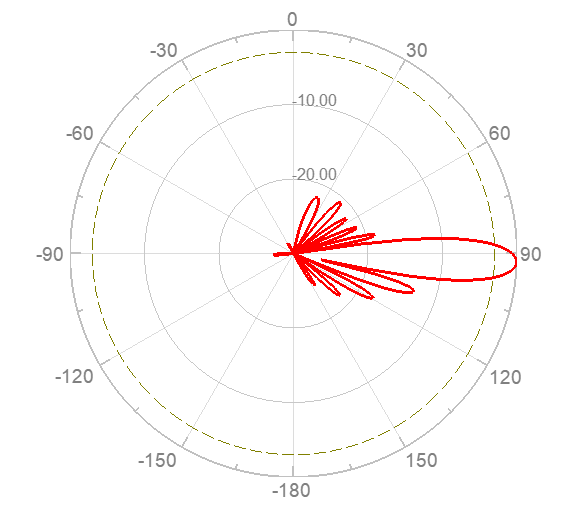

Vertical Pattern |
|||||||||||||
 |
 |
|||||||||||||
|
FDD:1695-2690MHz |
||||||||||||||
| Horizontal Pattern |

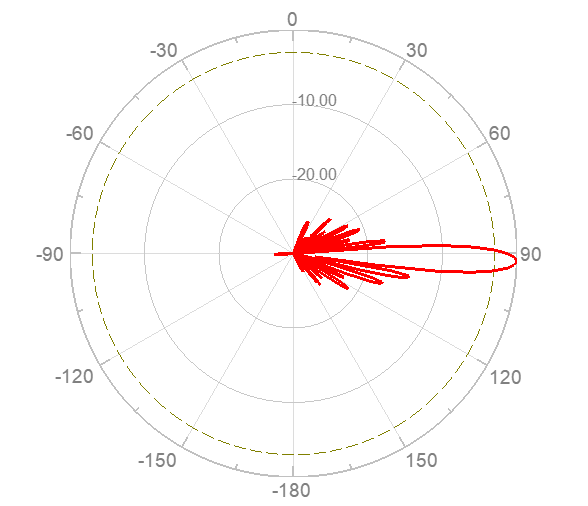

Vertical Pattern |
|||||||||||||
 |
 |
|||||||||||||
|
TDD:3300-3800MHz |
||||||||||||||
|
Single Column Beam |
||||||||||||||
|
Horizontal Pattern |
Vertical Pattern |
|||||||||||||
 |
 |
|||||||||||||
|

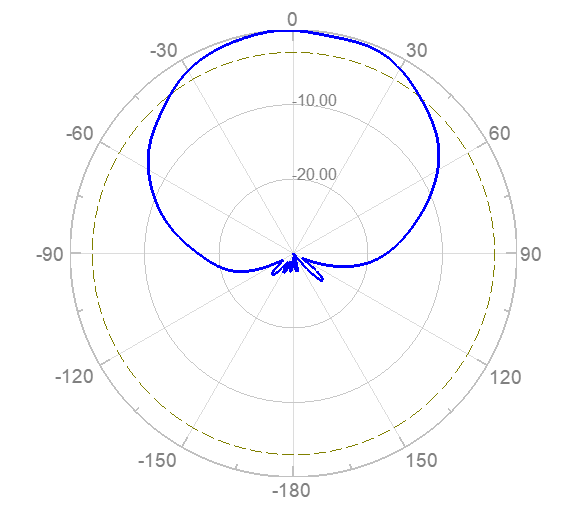

Broadcast Beam |
||||||||||||||
 |
||||||||||||||
|

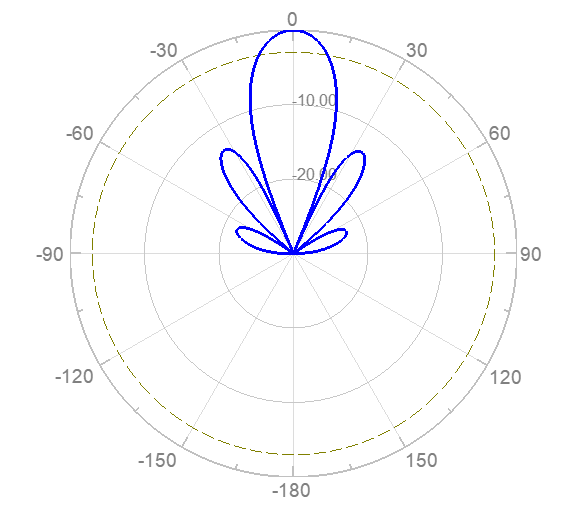

0° Service Beam |

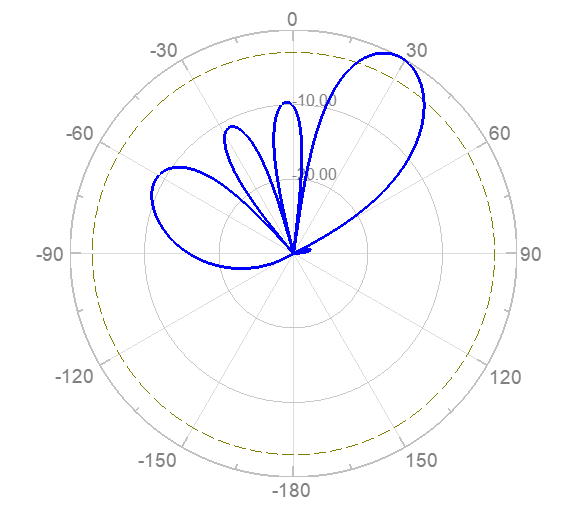

+30° Service Beam |

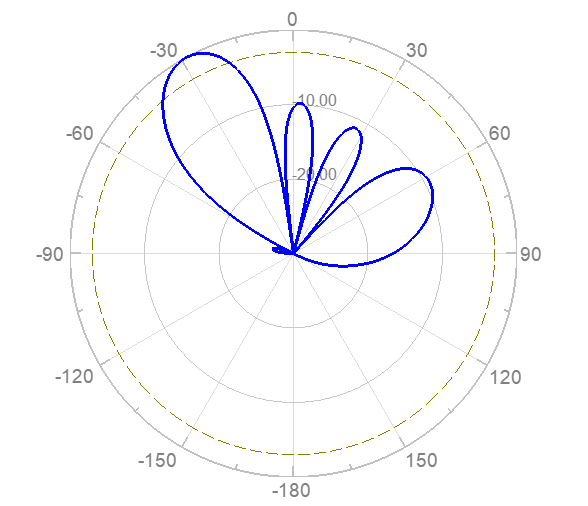

-30° Service Beam |
||||||||||||
 |
 |
 |
||||||||||||
|

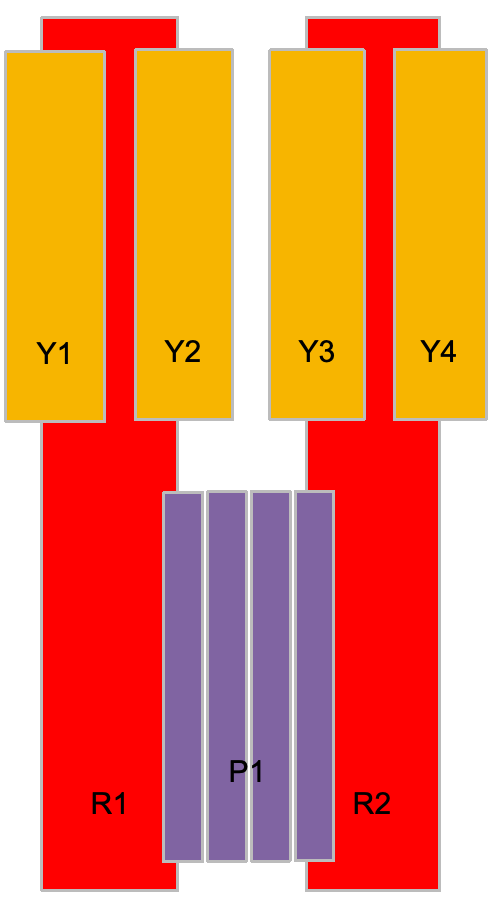

Layout of Array |
||||
|
Array |
Connector | Frequency(MHz) | RET Serial |  |
| R1 | 1-2 | 690-960 |
ZTR1…01 |
|
|
R2 |
3-4 | 690-960 | ZTR2…02 | |
| Y1 | 5-6 | 1695-2690 |
ZTY1…03 |
|
|
Y2 |
7-8 | 1695-2690 | ZTY2…04 | |
| Y3 | 9-10 | 1695-2690 |
ZTY3…05 |
|
|
Y4 |
11-12 | 1695-2690 | ZTY4…06 | |
| P1 | MQ4&MQ5 | 3300-3800 |
ZTP1…07 |
|
| All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0). | ||||
