Green Antenna HBN8U9016

8-port Sector Antenna,TDD 4×2300-2690MHz,Integrated RET

Compliant with BASTA 13.0, AISG v2.0/3.0 and 3GPP TDD 2.3 Integrated RET Transmissive radiators for high radiation efficiency Simplified feeder network for cable-less structure and low consumption Mechanical downtilt kit included

Description			8-port Sector Antenna,TDD 4×2300-2690MHz,Integrated RET
ZTT Product Code			HBN8U9016
Frequency Range						MHz	TDD:4×2300-2690(Y1)
Frequency Band						MHz	2300-2500		2490-2690
Coupling Factor between Calibration Port and Each Antenna Port						dB	-26±2
Max.Amplitude Tolerance from Calibration Port to Input Ports						dB	≤0.9
Max.Phase Tolerance from Calibration Port to Input Ports						Deg	≤8.0
Isolation between same Polarization ports						dB	≥20
Isolation between different Polarization ports						dB	≥23
VSWR						/	≤1.5
Electrical Downtilt						Deg	2-12,Continuously adjustable
Maximum Power						Watt	150(at 50℃ ambient temperature)
Single Column Beam	Gain Over All Tilts					dBi	15.0±0.3		15.2±0.4
	Gain by Tilt Average Mid					dBi	15.1		15.3
	Efficiency Average					%	66		65
	Horizontal 3dB Beam Width					Deg	95±15		90±15
	Vertical 3dB Beam Width					Deg	6.8±0.8		6.5±0.7
	1st Upper Side Lobe Suppression Above Main Beam					dB	≥15
	Front to Back Ratio at 180Deg ±30Deg					dB	≥23
	Cross-Polar Ratio 0Deg					dB	≥15
Broadcast Beam	Gain Over All Tilts					Deg	16.1.±0.3		16.3±0.5
	Gain by Tilt Average Mid					dBi	16.2		16.4
	Horizontal 3dB Beam Width					Deg	65±6		60±7
	Vertical 3dB Beam Width					Deg	6.8±0.7		6.3±0.7
	1st Upper Side Lobe Suppression Above Main Beam					dB	≥15
	Front to Back Ratio at 180Deg ±30Deg					dB	≥23
	Cross-Polar Ratio 0Deg					dB	≥15
Service Beam	0°Beam Gain Over All Tilts					dBi	20.0±0.6		20.2±0.5
	0°Beam Gain by Tilt Average Mid					dBi	20.0		20.2
	0°Beam Horizontal 3dB Beam Width					Deg	27±4		26±4
	0°Horizontal Sidelobe Suppression					dB	≥12
	0°Beam Front to Back Ratio					dB	≥28
	0°Beam Cross-Polar Ratio 0Deg					dB	≥20
Mechanical Specifications
Antenna Dimensions			mm	1100×295×145
Antenna Net Weight			kg	17.6
Packing Dimensions			mm	1325×361×217
Antenna Gross Weight			kg	27.2

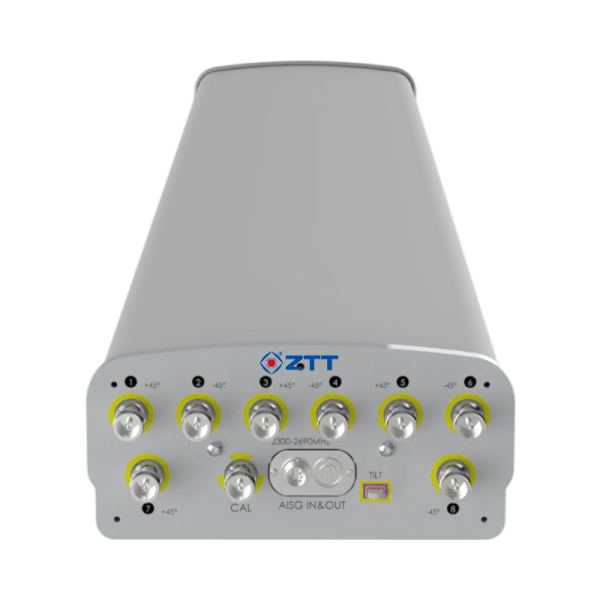

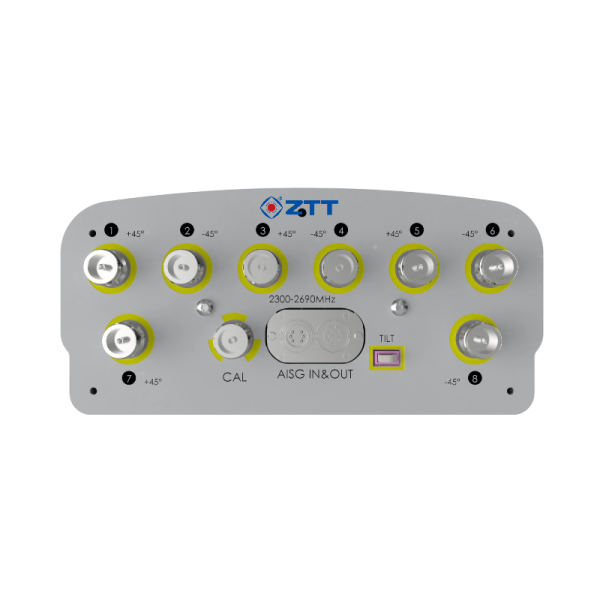

Connector Type			/	1×MQ4&MQ5
Connector Position			/	Bottom
Radiator Material			/	Low loss circuit broad
Radome Material / Color			/	Fiberglass / Light Grey RAL7035
Reflector Material			/	Aluminum
Storage Temperature			°C	-40 to +65
Operating Temperature			°C	-40 to +65
Humidity			/	5% to 95%
Max. operational Wind Speed			km/h	200
Wind Load @Rated Wind Front			N	726
Wind Load @Rated Wind Side			N	148
Wind Load @Rated Wind Rear			N	814
Lightning Protection			/	DC ground
Accessories
Model			/	HZJ36N
Weight			Kg	4.5
Downtilt Kit (mechanical)			Deg	0-12
Mounting Accessories (clamp)			/	Included with antenna
Mounting Pipe Diameter			mm	50-115
Internal RET Specifications
RCU (remote control unit)			/	Replaceable RET (can be exchangable without exchanging antenna)
				AISG2.0 /3GPP
Input Voltage Range			V	10-30 DC
Power Consumption			W	< 10 (motor activated , single RET) < 2 (stand by, single RET)
Adjustment Time (full range)			s	< 120 (typically, depending on antenna type)
RET Connector			/	1 pair of AISG 5 pin male & female
Pin Assignment According AISG			/	5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0
Lightning Protection			kA	5 (8/20 μs differential mode), 8 (8/20 μs common mode)
Reference Pattern
TDD:2300-2690MHz
Single Column Beam

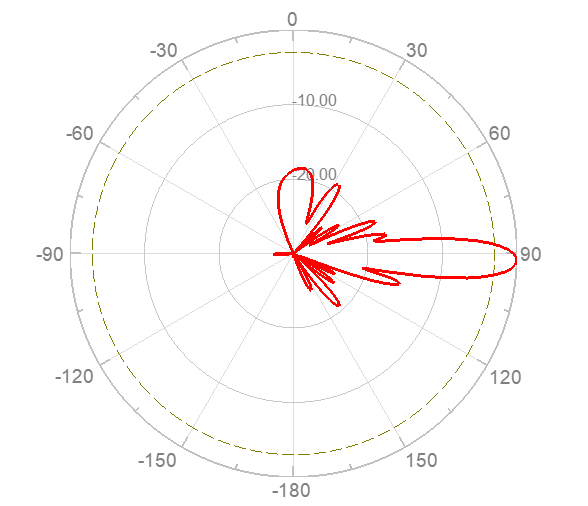

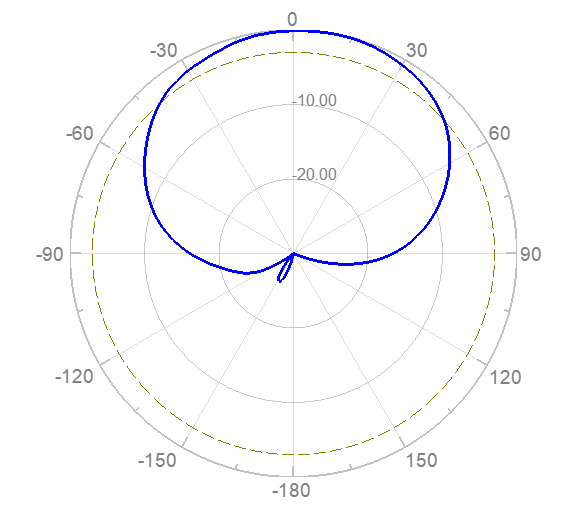

Horizontal Pattern					Vertical Pattern

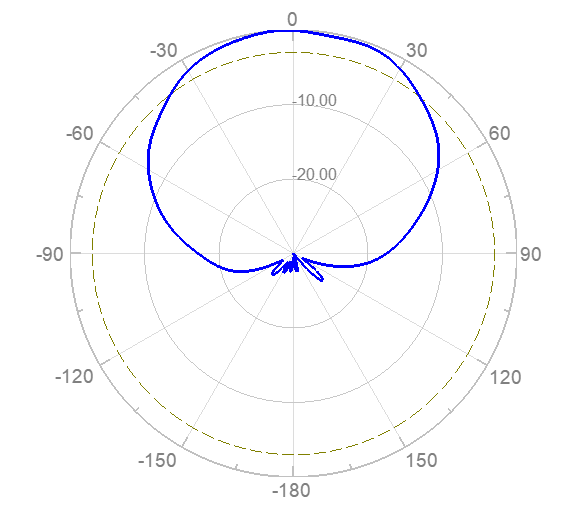

Broadcast Beam

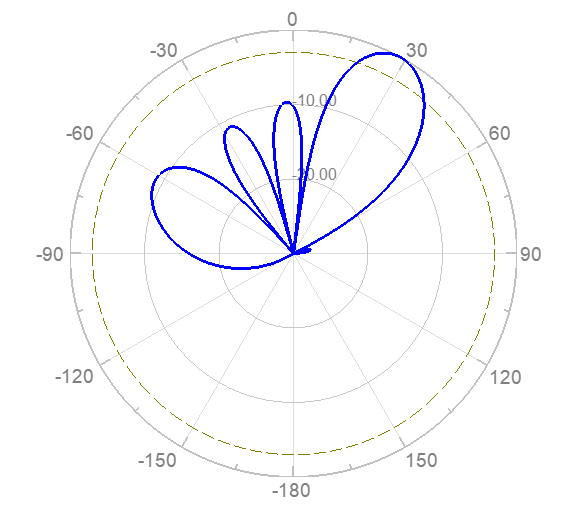

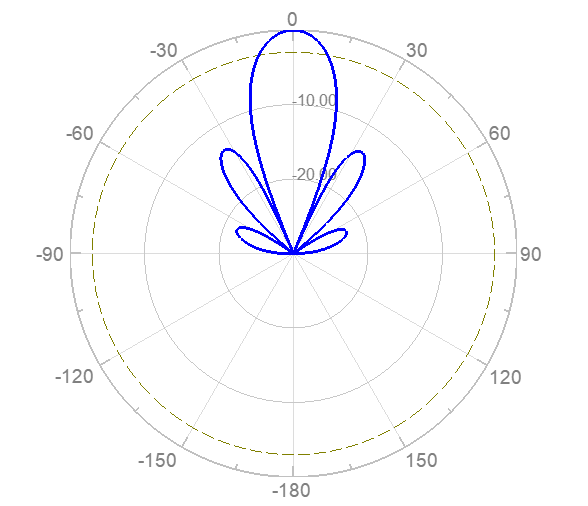

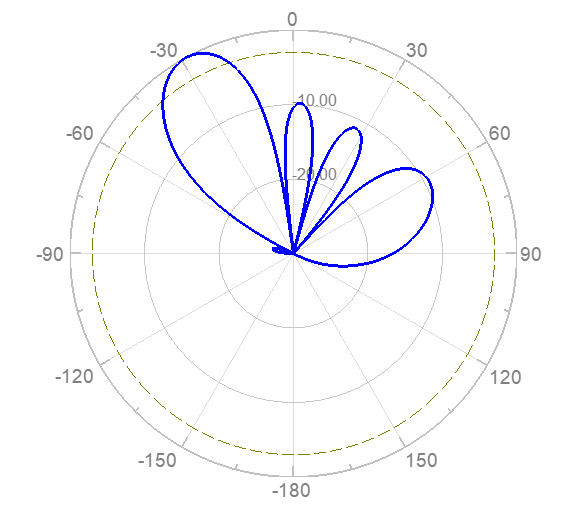

0° Service Beam		+30° Service Beam						-30° Service Beam

Layout of Array
Array	Connector	Frequency(MHz)	RET Serial
Y1	MQ4&MQ5	2300-2690	ZTY1…01
All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
