Stock Code: SH600522

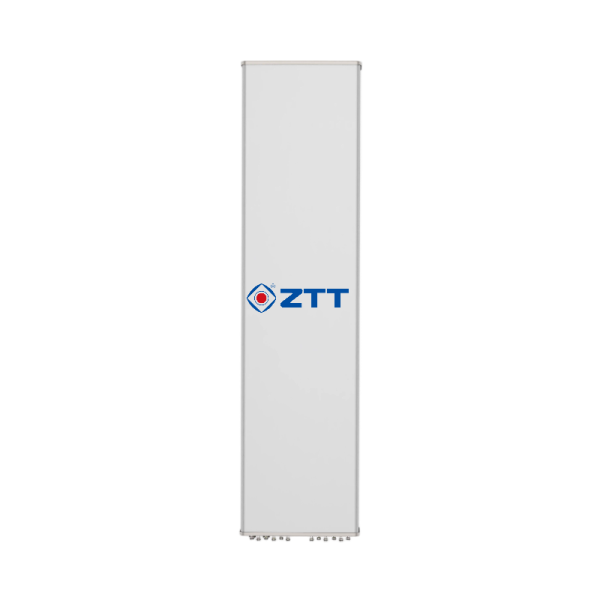

16-port Sector Antenna,
FDD:2×690-960&2×1695-2690MHz,65Deg,17&18dBi,
TDD:4×2300-2690MHz,90Deg,17dBi,Integrated RET
|
Description |
16-port Sector Antenna,
FDD:2×690-960&2×1695-2690MHz,65Deg,17&18dBi, TDD:4×2300-2690MHz,90Deg,17dBi,Integrated RET |
|||||||||||
| ZTT Product Code |
HBH448W651718 |
|||||||||||
|
Frequency Range |
MHz | FDD:2×690-960(R1/R2) | ||||||||||
| Frequency Band | MHz | 690-806 | 790-894 |
880-960 |
||||||||
|
Gain Over All Tilts |
dBi | 15.4±0.5 | 15.8±0.6 | 16.2±0.3 | ||||||||
| Gain by Tilt Average Mid | dBi | 15.4 | 15.9 |
16.3 |
||||||||
|
Efficiency Average |
% | 82 | 79 | 78 | ||||||||
| Horizontal 3dB Beam Width | Deg | 63±5 | 61±4 |
58±5 |
||||||||
|
Vertical 3dB Beam Width |
Deg | 11.2±1.1 | 10.1±0.8 | 9.0±0.6 | ||||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥23 | ≥24 | ≥25 | ||||||||
| Cross Polar Ratio 0Deg | dB |
≥15 |
||||||||||
|
Electrical Downtilt |
Deg | 2-12,Continuously adjustable | ||||||||||
| VSWR | / |
≤1.5 |
||||||||||
|
Intraband Isolation |
dB | ≥25 | ||||||||||
| Interband Isolation | dB |
≥25 |
||||||||||
|
Intermodulation IM3 |
dBc | ≤-153(2×43 dBm carrier) | ||||||||||
| Max. Power Per Port | Watt |
250(at 50℃ ambient temperature) |
||||||||||
|
Frequency Range |
MHz | FDD:2×1695-2690(Y1/Y2) | ||||||||||
| Frequency Band | MHz | 1695-1990 | 1920-2200 | 2300-2500 |
2490-2690 |
|||||||
|
Gain Over All Tilts |
dBi | 16.2±0.6 | 16.4±0.7 | 17.0±0.5 | 17.1±0.9 | |||||||
| Gain by Tilt Average Mid | dBi | 16.3 | 16.5 | 17.0 |
17.2 |
|||||||
|
Efficiency Average |
% | 81 | 79 | 78 | 76 | |||||||
| Horizontal 3dB Beam Width | Deg | 66±4 | 61±4 | 57±5 |
63±6 |
|||||||
|
Vertical 3dB Beam Width |
Deg | 8.4±0.6 | 7.6±0.6 | 6.5±0.3 | 6.2±0.4 | |||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥24 | ||||||||||
| Cross Polar Ratio 0Deg | dB |
≥15 |
||||||||||
|
Electrical Downtilt |
Deg | 2-12,Continuously adjustable | ||||||||||
| VSWR | / |
≤1.5 |
||||||||||
|
Intraband Isolation |
dB | ≥25 | ||||||||||
| Interband Isolation | dB |
≥25 |
||||||||||
|
Intermodulation IM3 |
dBc | ≤-153(2×43 dBc carrier) | ||||||||||
| Max. Power Per Port | Watt |
250(at 50℃ ambient temperature) |
||||||||||
|
Electrical Specifications |
||||||||||||
| Frequency Range | MHz |
TDD:4×2300-2690(Bottom:Y3) |
||||||||||
|
Frequency Band |
MHz | 2300-2500 | 2490-2690 | |||||||||
| Coupling Factor between
Calibration Port and Each Antenna Port |
dB |
-26±2 |
||||||||||
|
Max.Amplitude Tolerance from Calibration Port to Input Ports |
dB | ≤0.9 | ||||||||||
| Max.Phase Tolerance from
Calibration Port to Input Ports |
Deg |
≤9.0 |
||||||||||
|
Isolation between same Polarization ports |
dB | ≥20 | ||||||||||
| Isolation between different Polarization ports | dB |
≥23 |
||||||||||
|
VSWR |
/ | ≤1.5 | ||||||||||
| Electrical Downtilt | Deg |
2-12,Continuously adjustable |
||||||||||
|
Maximum Power |
Watt | 150(at 50℃ ambient temperature) | ||||||||||
| Single Column Beam | Gain Over All Tilts | dBi | 15.3±0.6 |
15.5±0.8 |
||||||||
|
Gain by Tilt Average Mid |
dBi | 15.4 | 15.6 | |||||||||
| Efficiency Average | % | 66 |
64 |
|||||||||
|
Horizontal 3dB Beam Width |
Deg | 92±10 | 83±9 | |||||||||
| Vertical 3dB Beam Width | Deg | 6.8±0.3 |
6.4±0.3 |
|||||||||
|
1st Upper Side Lobe Suppression Above Main Beam |
dB | ≥15 | ||||||||||
| Front to Back Ratio
at 180Deg ±30Deg |
dB |
≥23 |
||||||||||
|
Cross-Polar Ratio 0Deg |
dB | ≥15 | ||||||||||
| Broadcast Beam | Gain Over All Tilts | Deg | 16.6±0.6 |
16.8±0.8 |
||||||||
|
Gain by Tilt Average Mid |
dBi | 16.6 | 16.8 | |||||||||
| Horizontal 3dB Beam Width | Deg | 64±5 |
62±6 |
|||||||||
|
Vertical 3dB Beam Width |
Deg | 6.8±0.3 | 6.2±0.3 | |||||||||
| 1st Upper Side Lobe
Suppression Above Main Beam |
dB |
≥15 |
||||||||||
|
Front to Back Ratio at 180Deg ±30Deg |
dB | ≥23 | ||||||||||
| Cross-Polar Ratio 0Deg | dB |
≥15 |
||||||||||
|
Service Beam |
0°Beam Gain Over All Tilts |
dBi | 20.0±0.6 | 20.3±0.8 | ||||||||
| 0°Beam Gain by Tilt Average Mid | dBi | 20.1 |
20.4 |
|||||||||
| 0°Beam Horizontal 3dB Beam Width | Deg | 26±2 | 24±2 | |||||||||
|
0°Beam Front to Back Ratio |
dB | ≥28 | ||||||||||
| 0°Beam Cross-Polar Ratio 0Deg | dB |
≥20 |
||||||||||
|
Mechanical Specifications |
||||||||||||
| Antenna Dimensions | mm |
2360×498×186 |
||||||||||
|
Antenna Net Weight |
kg | 48.9 | ||||||||||
| Packing Dimensions | mm |
2585×550×258 |
||||||||||
|
Antenna Gross Weight |
kg | 63.2 | ||||||||||

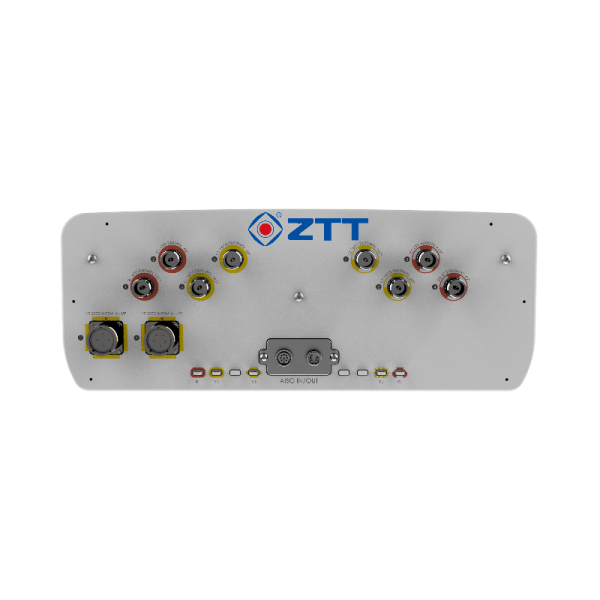

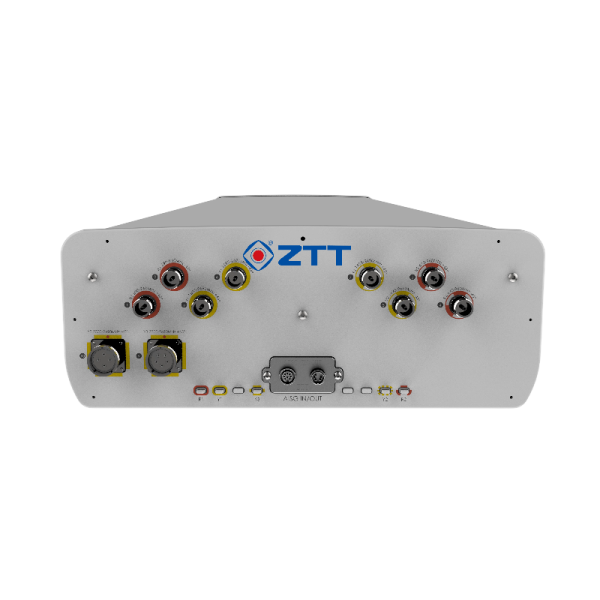

| Connector Type | / |
8×4.3-10 Female, 1×MQ4&MQ5 |
||||||||||
|
Connector Position |
/ | Bottom | ||||||||||
| Radiator Material | / |
Low loss circuit broad & Aluminum |
||||||||||
|
Radome Material / Color |
/ | Fiberglass / Light Grey RAL7035 | ||||||||||
| Reflector Material | / |
Aluminum |
||||||||||
|
Storage Temperature |
°C | -40 to +65 | ||||||||||
| Operating Temperature | °C |
-40 to +65 |
||||||||||
|
Humidity |
/ | 5% to 95% | ||||||||||
| Max. operational Wind Speed | km/h |
200 |
||||||||||
|
Wind Load @Rated Wind Front |
N | 2429 | ||||||||||
| Wind Load @Rated Wind Side | N |
388 |
||||||||||
|
Wind Load @Rated Wind Rear |
N | 2722 | ||||||||||
| Lightning Protection | / |
DC ground |
||||||||||
|
Accessories |
||||||||||||
| Model | / |
HZJ38N |
||||||||||
|
Weight |
Kg | 7.0 | ||||||||||
| Downtilt Kit (mechanical) | Deg |
0-12 |
||||||||||
|
Mounting Accessories (clamp) |
/ | Included with antenna | ||||||||||
| Mounting Pipe Diameter | mm |
50-115 |
||||||||||
|
Internal RET Specifications |
||||||||||||
|
RCU (remote control unit) |
/ | Replaceable RET
(can be exchangable without exchanging antenna) |
||||||||||
|
AISG2.0 /3GPP |
||||||||||||
|
Input Voltage Range |
V | 10-30 DC | ||||||||||
| Power Consumption | W |
< 10 (motor activated , single RET) < 2 (stand by, single RET) |
||||||||||
|
Adjustment Time (full range) |
s | < 120 (typically, depending on antenna type) | ||||||||||
| RET Connector | / |
1 pair of AISG 5 pin male & female |
||||||||||
|
Pin Assignment According AISG |
/ | 5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0 | ||||||||||
| Lightning Protection | kA |
5 (8/20 μs differential mode), 8 (8/20 μs common mode) |
||||||||||
|

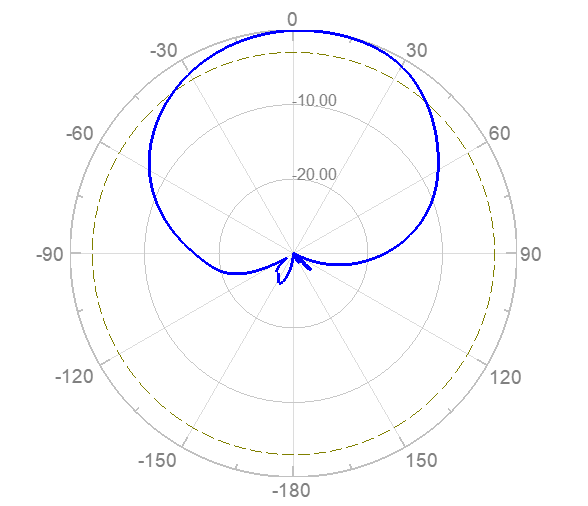

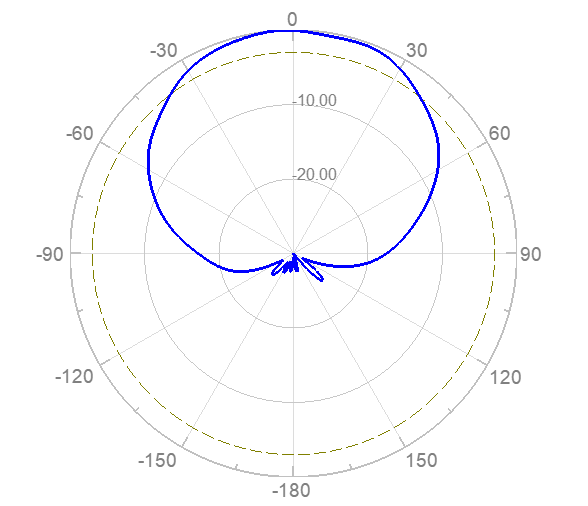

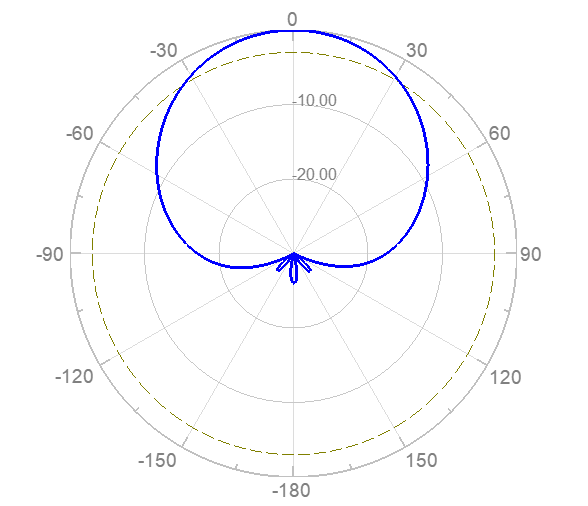

Reference Pattern |
||||||||||||
|
FDD:690-960MHz |
||||||||||||
|

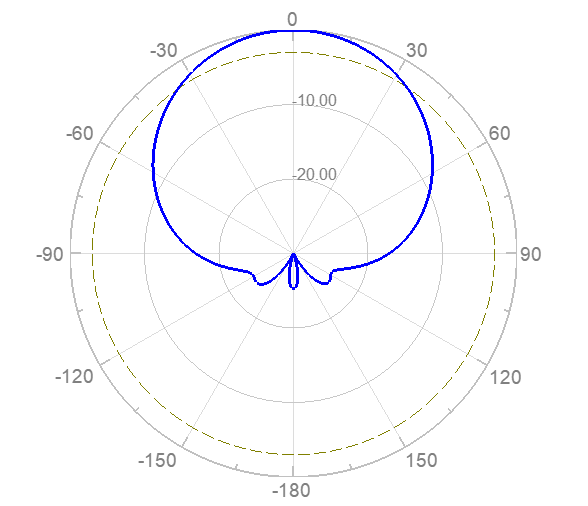

Horizontal Pattern |

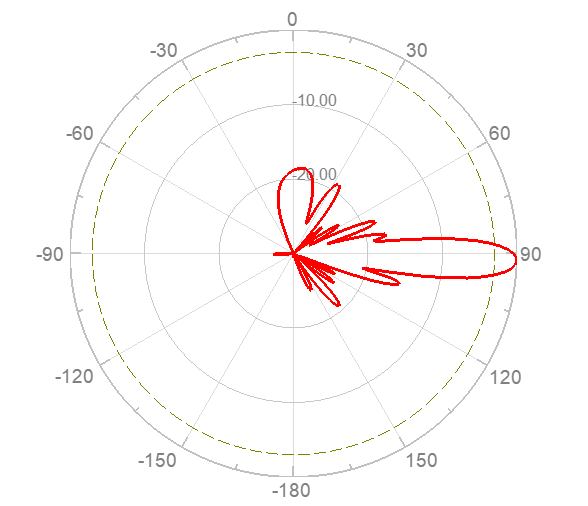

Vertical Pattern |
|||||||||||
 |
 |
|||||||||||
|
FDD:1695-2690MHz |
||||||||||||
| Horizontal Pattern |

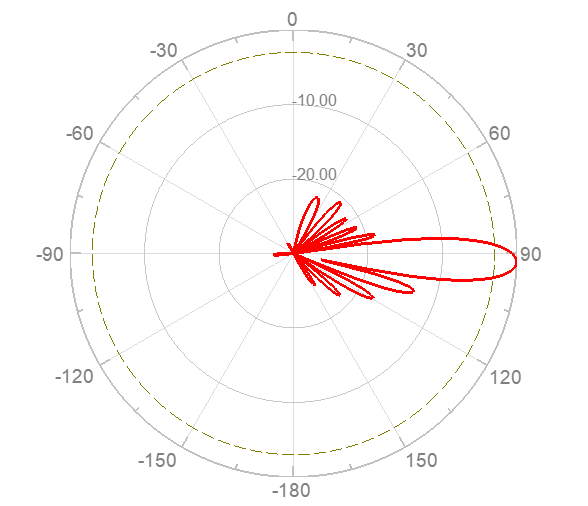

Vertical Pattern |
|||||||||||
 |
 |
|||||||||||
|
TDD:2300-2690MHz |
|||
|
Single Column Beam |
|||
|
Horizontal Pattern |

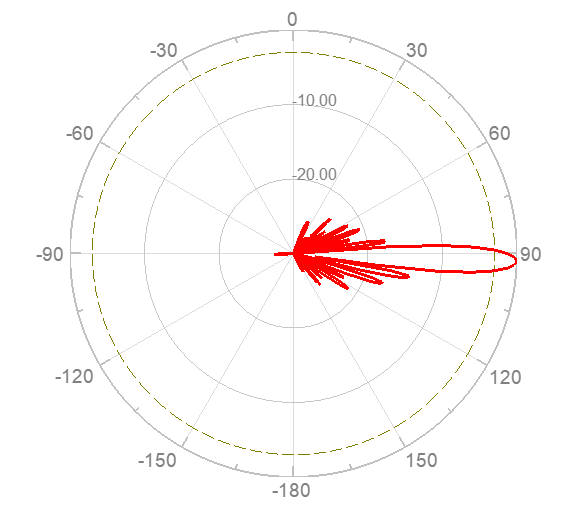

Vertical Pattern | ||
 |
 |
||
|
Broadcast Beam |
|||
 |
|||
|

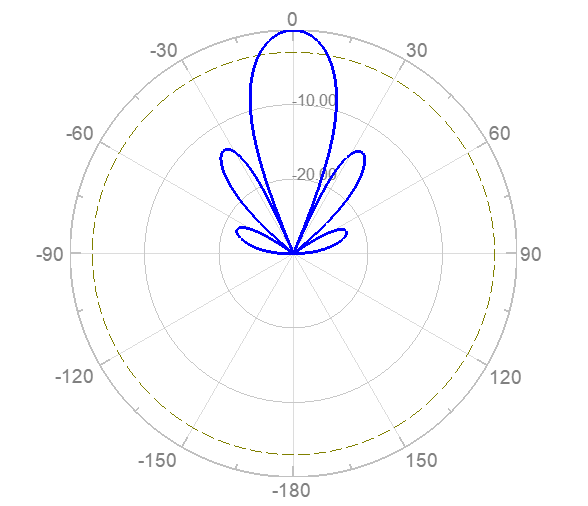

0° Service Beam |

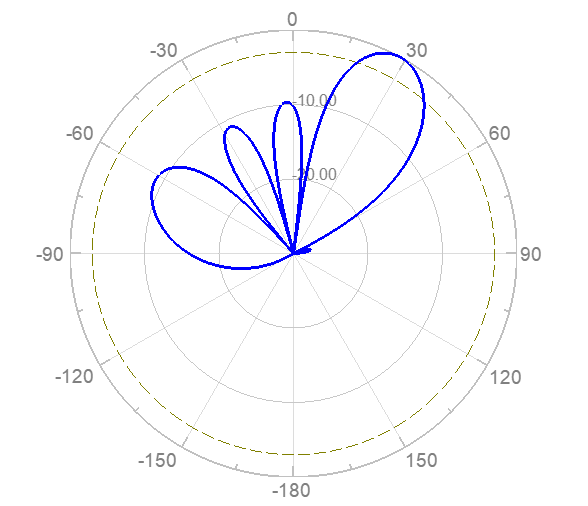

+30° Service Beam |

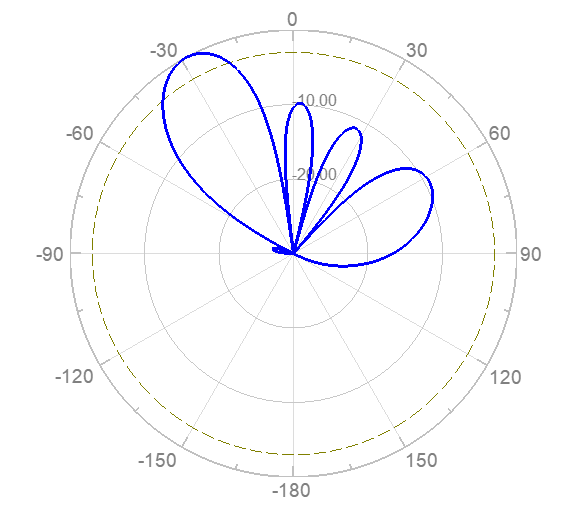

-30° Service Beam |
|
 |
 |
 |
|
|
Layout of Array |
||||
| Array | Connector | Frequency(MHz) |
RET Serial |
 |
|
R1 |
1-2 | 690-960 | ZTR1…01 | |
| R2 | 3-4 | 690-960 |
ZTR2…02 |
|
|
Y1 |
5-6 | 1695-2690 | ZTY1…03 | |
| Y2 | 7-8 | 1695-2690 |
ZTY2…04 |
|
|
Y3 |
MQ4&MQ5 | 2300-2690 |
ZTY3…05 |
|
| All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0). | ||||
