Ribbon Cable

The ribbon cable, with excellent mechanical property, moisture proof, suitable for duct, and non-self-supporting overhead application

Product Description

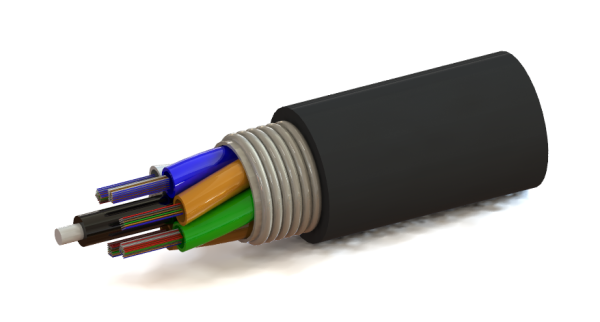

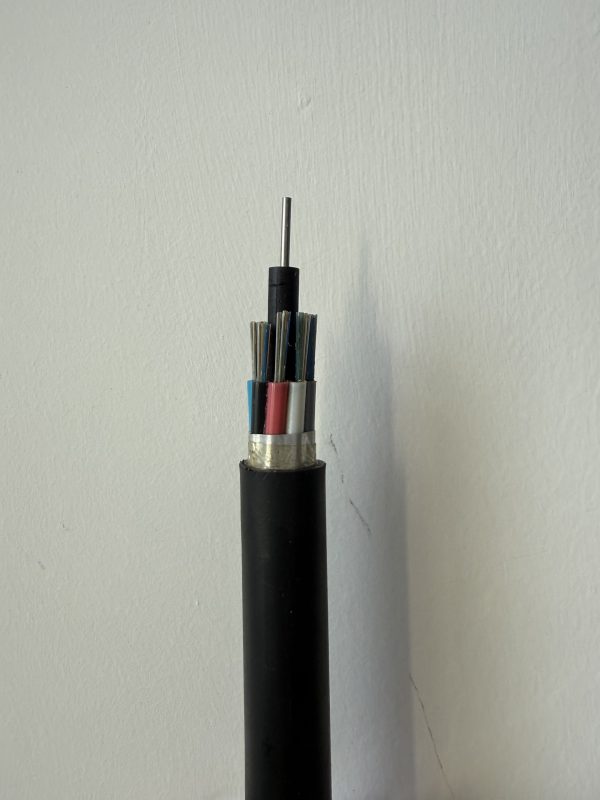

The structure involves arranging an even number of optical fibers in parallel, bonding them with adhesive material and UV-curing them into fiber ribbons. These ribbons are then inserted into loose tubes made of high-modulus polyester material, with the tubes filled with water-blocking compound. At the core center lies a metallic strength member, around which the loose tubes (and filler rods) are stranded to form a compact circular cable core. Gaps within the core are filled with water-blocking filling compound. An aluminum-plastic laminate (APL) tape is longitudinally applied before the cable is sheathed with an extruded polyethylene outer jacket.

Product Advantages

Utilizing high-quality 4, 6, 12, and 24 fiber ribbons, the cable features flexible application. Precise fiber over-length control technology and stable cabling processes ensure the optical cable possesses superior mechanical and environmental performance.
The tubes exhibit excellent flexibility and resistance to lateral pressure.
The polyethylene (PE) sheath provides outstanding resistance to ultraviolet (UV) radiation.
An aluminum-plastic laminate (APL) moisture barrier and a full-section water-blocking structure guarantee excellent water-blocking and moisture-proof performance.

Installation method: Duct, non-self-supporting overhead application
Operating temperature:
Storage and operation: -40℃ to +70℃; Laying: -15℃ to +60℃.
Bending radius: Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.
