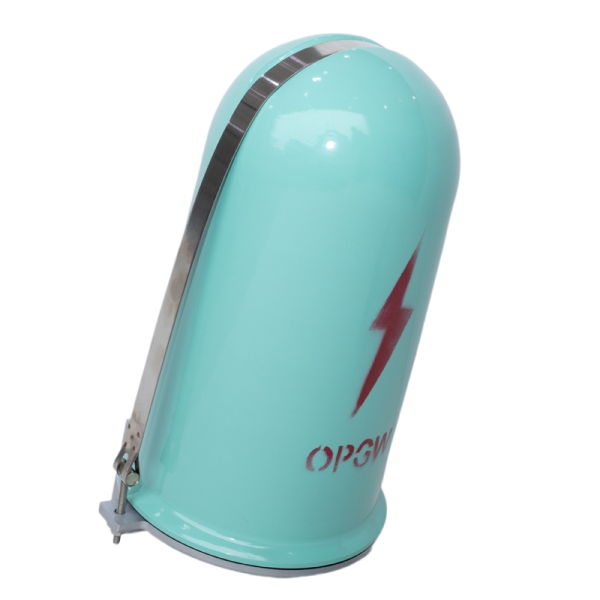

PTK Joint Box

The cable joint box is used for the direct joint and branch joint of optical fiber optic cable.

The shell is made of high density aluminum alloy
The jointing parts and fixing parts are made of high quality stainless steel and cast steel
Repeated used, easy to re-joint and expand capacity
Installed on tower or pole alternative
Good mechanical, sealing and anti-corrosion performanc
Straight through or branched splice application, has 1 in 1 out, 1 in 2 out, 2 in 2 out function

Catalogue Table of PTK Joint box for OPGW

Cat. No.	Specification
PTK-O20-T (G) **D	2 ports (O-O)
PTK-O30-T (G) **D	3 ports (O-2O)/(2O-O)
PTK-O40-T (G) **D	4 ports (2O-2O)
PTK-O11-T (G) **D	2 ports (O-A)
PTK-O12-T (G) **D	3 ports (O-2A)
PTK-O21-T (G) **D	3 ports (2O-A)
PTK-O22-T (G) **D	4 ports (2O-2A)
PTK-O31-T (G) **D	4 ports (3O-A)

Fiber bending additional attenuation: ≤0.01dB
Fiber bending radius: ≥30mm
Retaining fiber length: ≥1.6m
Tensile crush resistance: 2000N/100mm
Environment temperature: -40°C ~ +65°C
Maximum fibers splice capacity: 96D
