Suitable for transmission and distribution system with rated voltage up to 0.6/1kV.

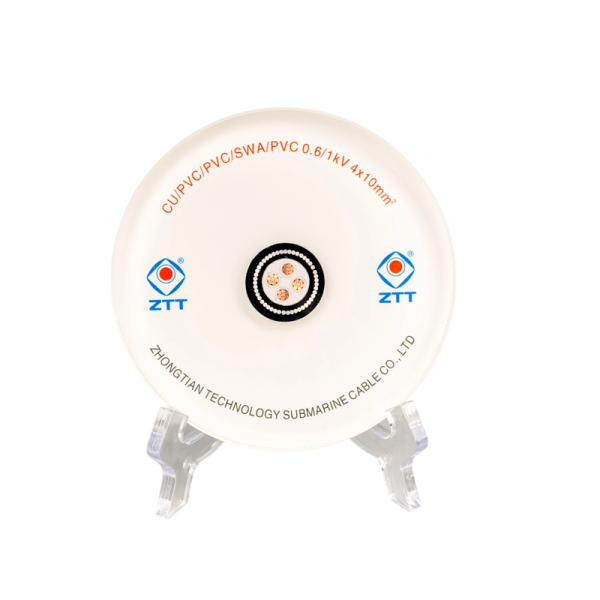

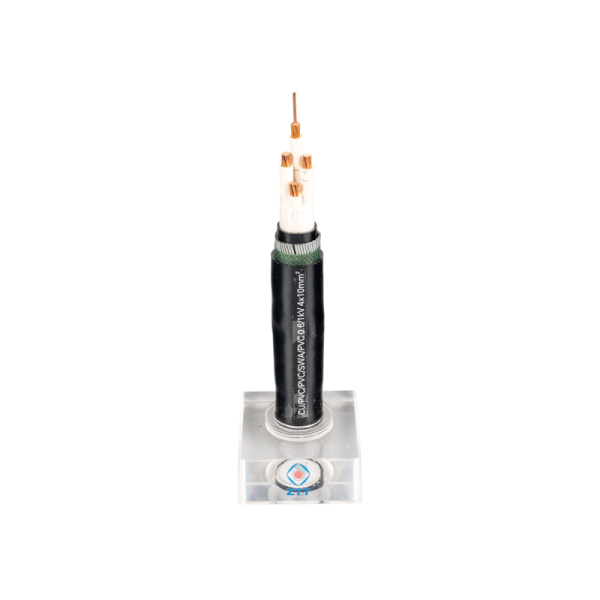

The low voltage cable with both shielding and armoring not only has excellent anti-electromagnetic interference capability, but can also effectively prevent mechanical damage.
Cables are offered accords with different standards, IEC, AS/NZS, NF C, IRAM, SANS, BS, DIN, AIEC, etc.
Conductor: Copper/aluminum wire, class 2 stranding
Number of Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Nominal Cross Sectional Area/mm2: 10-800
Insulation: Optional of Cross-Linked Polyethylene(XLPE), Polyvinyl Chloride(PVC)
Metallic screen: Optional of copper wire, copper tape, aluminum wire
Armor: Optional of steel tape, steel wire
Outer Sheath: Optional of Polyvinyl Chloride(PVC), Polyethylene(PE)
Max. continuous temperature in operation: 90℃
For XLPE insulated cable: 90℃
For PVC insulated cable: 70℃
Max. short-circuit temperature of the conductor (max. duration: 5 seconds): 250℃
Min. installation ambient temperature: 0℃
Permissible pulling force:
For copper conductor: 70N/mm2
For aluminum conductor: 40N/mm2
For aluminum alloy conductor: 55N/mm2
Permissible side pressure: 3000N/m
Permissible bending radius of cable during installation:
For Single Core Cable: 15D
For Multi-Cores Cable: 12D
(Note: D-out diameter of the cable)
For steel tape armored cable: Laying underground. It can bear mechanical action but cannot bear the large pulling force.
For steel wire armored cable: Suitable for laying high drop area. It can bear mechanical force action and the large pulling force.
When the customer need special function cable, for example water-blocking, water proofing, lame retardant, fire resistant, anti-termites, anti-biting, laying in the river or in the sea, the construction should be further designed.
