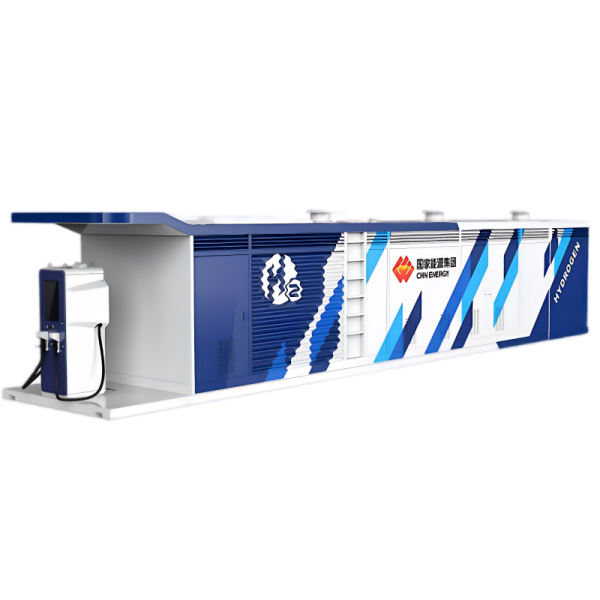

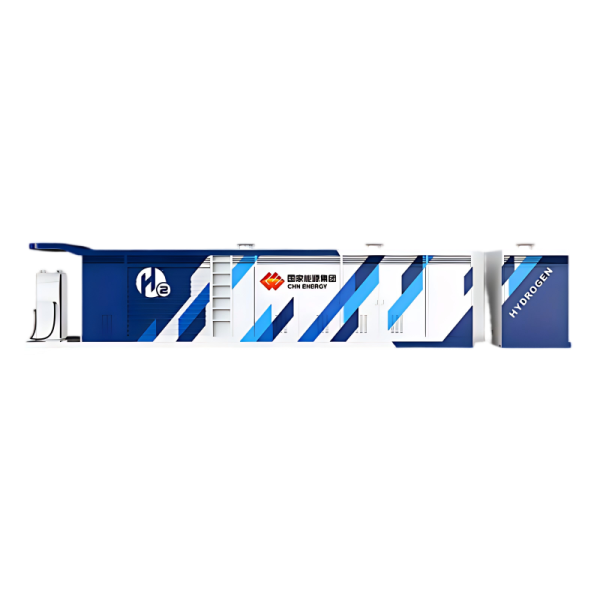

Integrated Hydrogen Refueling Station

The first skid-mounted fully integrated hydrogen refueling station in China. Explosion-proof, integrated cold water system, SAE J2601 compliant with outlet temperature -33~-40°C, AI intelligent monitoring, and highly mobile for fast deployment.

Product  Details

This skid-mounted station integrates explosion-proof hydrogenation equipment and a cold water system. It meets SAE J2601 with a low outlet temperature of -33~-40°C. AI monitoring and infrared communication ensure safe pressure and temperature of onboard cylinders. Compared to traditional stations, it offers strong mobility, shorter construction time, and smaller footprint.

Product Advantages

First skid-mounted fully integrated hydrogen refueling station in China
SAE J2601 compliant with outlet temperature -33~-40°C
AI intelligent monitoring + infrared data communication for cylinder safety
Highly mobile, shorter construction period, reduced station area

Name	Technical parameter
Exhaust volum (Kg/12hr，12.5MPaG)	260
Intake pressure(MPaG)	5~20 (Before filtering)
Outlet pressure(MPaG，Max)	90
Intake temperature (℃)	<45 (extreme)
Exhaust temperature(℃)	≤40 (Compressor final outlet temperature)
Hydrotreater Outlet temperature(℃)	-33~-40
Total power (kW)	60
Compressor type	Liquid drive oil-free piston type
Cooling mode	Water cooling
Explosion-proof rating	ExdII CT4
Service ambient temperature (℃)	-25~50 （Out of range need to be stated，we provide customized services.)
Overall dimension (mm)	15000×3000×4000

Temporary or mobile hydrogen refueling for fuel cell buses, trucks, and fleet operations, as well as remote areas or demonstration projects where traditional station construction is impractical.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Integrated Hydrogen Refueling Station

Related Products

Related products

Liquid-hydrogen pump

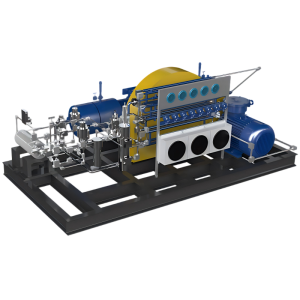

Diaphragm compressor
