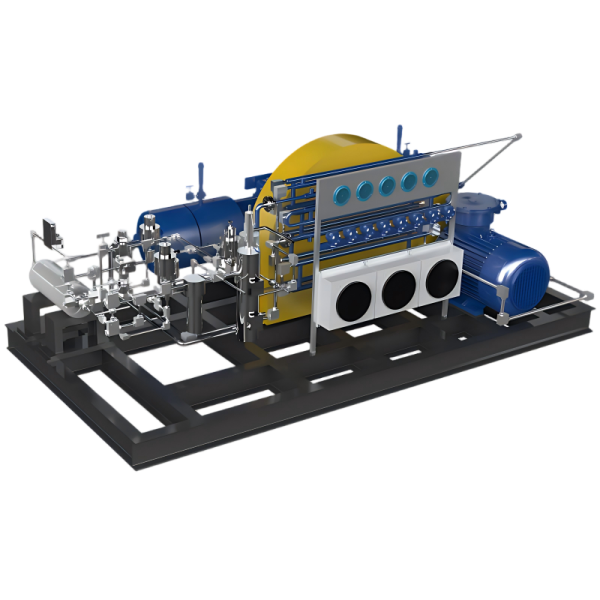

Diaphragm compressor

Our diaphragm compressor is built on precision-based design methodology, integrating advanced multi-physics simulation and surface treatment technologies. It delivers a domestic-leading outlet pressure of 87.5 MPa and a displacement of 500 Nm³/h at 12 MPa inlet, ensuring reliable, oil-free compression for high-pressure hydrogen applications.

Product  Details

This product is an oil-free compressor that achieves gas compression through hydraulic-driven diaphragm reciprocating deformation. The diaphragm completely isolates the hydraulic fluid from the process gas, ensuring contamination-free output. With a modular design, compact structure, and reliable sealing, it is suitable for high-pressure hydrogen and specialty gases. Features include high discharge pressure, stable volumetric efficiency, and long maintenance intervals, making it ideal for hydrogen refueling stations, high-pressure hydrogen storage, and industrial gas compression.

Product Advantages

Based on precision design thought, for the first time, the diaphragm compressor overall design and core part design technology are achieved.
Breakthroughs in gas-liquid-solid coupling technology, diaphragm surface treatment technology, high pressure hydraulic plunger technology
The first in China: outlet pressure 87.5MPa, discharge capacity 500Nm3/ h@12MPa

Application scenarioParameter	45 MPa Hydrogenation station	90 MPa Hydrogenation station	Hydrogen filling tank truck	Hydrogen filled bottle	High-pressure hydrogen transfer
Intake pressure (MPa)	3~20	10~30	0.8~3	0.1~3	0.8~3
Exhaust pressure (MPa)	45	90	20~22	15~20	5~20
Exhaust volume (Nm³/h)	200~2000	100~1000	300~2000	10~800	100~1500
Compression series	1~2	1~2	1~3	1~2	1~2
Motor power (kW)	30~200	30~185	75~315	3~160	22~200
