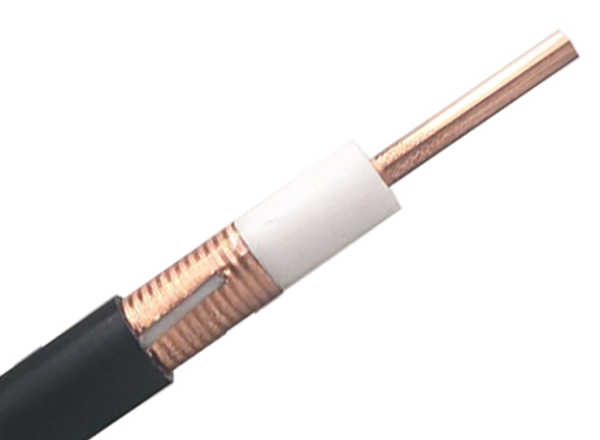

HLRCACY(Z)-50-12T （800-6000MHZ）

ZTT offers a comprehensive copper leaky cable, capable of producing 1/2″, 7/8 “, 1-1/4”, 1-5/8 “. ZTT has won the single championship for leaky cable and has the first simulation tunnel testing system in China.

Product Advantages

High compatibility, low system loss
Efficiency ＆Convenience
Low field strength, uniform radiation
Convenient construction ＆ engineering inspection
Rank: No.1 Brand in China

Cable Type: HLRCACY(Z)-50-12T

Electrical Specifications
Impedance	Ohm	50±2
Velocity	%	88
Capacitance	pF/m	76
Stop bands	MHz	1200-1400，2025~2110，2300~2400

Mechanical Specifications

Jacket Material	PE / LSZH flame retardant polyolefin
Inner Conductor Material	Copper clad aluminum wire
Outer Conductor Material	Overlapping corrugated copper foil
Diameter Inner Conductor	mm	4.80±0.05
Diameter Outer Conductor	mm	13.00±0.30
Diameter over Jacket	mm	15.60±0.30
Minimum Bending Radius, Single Bend	mm	200(Single bend)
Tensile Force	N	1100
VSWR	1700-2025MHz	≤1.30
	2110-2700MHz	≤1.30
	3300-3700MHz	≤1.40
	4800-5000MHz	≤1.40
Recommended Clamp Spacing	m	0.9
Minimum Distance to Wall	mm	80

Temperature Specifications
Installation temperature	℃	-25~+60 ℃
Operation temperature	℃	-20~+85 ℃
Storage temperature	℃	-55~+85 ℃

Attenuation and Power Rating

Frequency(MHz)	Attenuation(dB/100m)	Coupling loss (50%/95%,2m)
600	6.13	88/97
700	6.68	87/96
800	7.22	86/95
850	7.44	84/90
900	7.71	79/89
1000	7.96	76/86
1200	9.06	76/86
1400	9.94	75/85
1500	10.35	75/85
1700	11.11	70/84
1800	11.50	69/75
1900	11.93	66/77
2000	12.34	73/83
2100	12.67	77/86
2300	13.39	74/83
2400	13.76	74/84
2500	14.17	75/83
2600	14.48	75/82
2700	14.85	75/83
3000	16.22	75/81
3300	17.00	71/80
3400	17.31	70/79
3500	17.74	71/79
3600	17.94	71/79
3700	18.41	71/79
3800	18.74	70/78
4000	19.50	70/78
4200	20.81	70/78
4400	21.53	69/77
4600	22.41	69/77
4800	23.62	68/77
5000	25.20	68/76
5400	26.72	66/74
5800	30.16	66/74
6000	32.42	65/74
