Copper Strip

High-purity copper strips manufactured through advanced precision rolling technology, offering exceptional conductivity, surface quality, and dimensional accuracy for critical electrical and electronic components.

Product Introduction: ZTT’s copper strips are produced from high-purity cathode copper (≥99.99%) using fully automated horizontal continuous casting, double-side milling, and bell-type annealing processes. With thickness ranging from 0.05–2.0mm and widths up to 500mm, they meet stringent international standards (GB/T, ASTM equivalent).
Product Advantages:Superior Conductivity: Achieves ≥98% IACS (0.017241–0.017593 Ω·mm²/m), minimizing energy loss in high-frequency applications. Low Oxygen Content: ≤30ppm oxygen purity ensures corrosion resistance and stable performance. Precision Dimensional Control: Tight tolerances (e.g., ±0.005mm for thin gauges) enable seamless integration in compact designs. Enhanced Mechanical Properties: Customizable states (M/Y4/Y8/Y) with tensile strength 200–300+ MPa and elongation up to 70% for flexible forming. Eco-Friendly Compliance: Meets EU RoHS environmental standards (Pb/Hg/Cd/Cr⁶⁺ ≤1,000ppm).

Copper Strip
Parameter	Specifications
Material Standard	GB/T 11091-2005 (Cable), GB/T 18813-2002 (Transformer), GB/T 20415-2010 (Overfabric)
Trade Marks	T1, TU1, T2, TU2
State	M (Soft), Y8 (1/4 Hard), Y4 (1/2 Hard), Y (Hard)
Thickness (mm)	0.05–2.0
Width (mm)	10–500
Thickness Tolerance	±0.005–0.015mm (varies by gauge)
Width Tolerance	±0.05–0.10mm
Tensile Strength	200–300+ MPa (adjustable by state)
Elongation	25–70%
Conductivity (IACS)	≥98% (Typical: 100% for T1/TU1-M)

RF Communication Cables: Shielding strips for high-frequency signal integrity.
Photovoltaic Systems: Interconnection ribbons for solar cells.
Transformers & Inductors: Winding cores requiring high magnetic permeability.
Automotive Electronics: Cylinder liners, sensor components, and busbars.
Consumer Electronics: Connectors, relays, and heat sinks in compact devices.
Power Distribution: Grounding strips for railway systems (e.g., ZPW-2000A/UM71).

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Copper Strip

Related Products

Related products

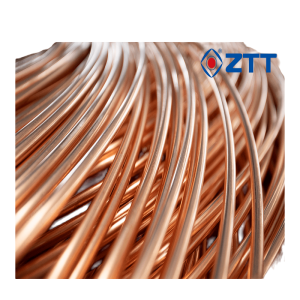

Copper Rod
