AL-covered Stainless Steel Tube OPGW

Optical fibers are placed in a hermetically sealed stainless steel tube covered with aluminum layer. The central aluminum-clad stainless steel tube is surrounded by single layer or double layer metal wires. Good anti-corrosion performance, suitable for highly corrosive environment, no need to use anti-corrosion grease.

Characteristics:

Al-covered stainless steel tube design increases the cross section ofAL, to reach a better short-circuit current and lightning resistance performance;
Good anti-corrosion performance;well suited for highly corrosive environments no need to use anti-corrosion grease;
Applied to the transmission line which requires small diameter and largeshort-circuit current;
Thisdesign offers greater crush and mechanical protection to the fibers from environmental effects.

Standards：

IEC 60794-4-10	Aerial optical cables along electrical power lines – Family specification for OPGW
IEEE1138-2009	IEEE Standard for testing and performance for optical ground wire (OPGW) for use on electric utility power lines

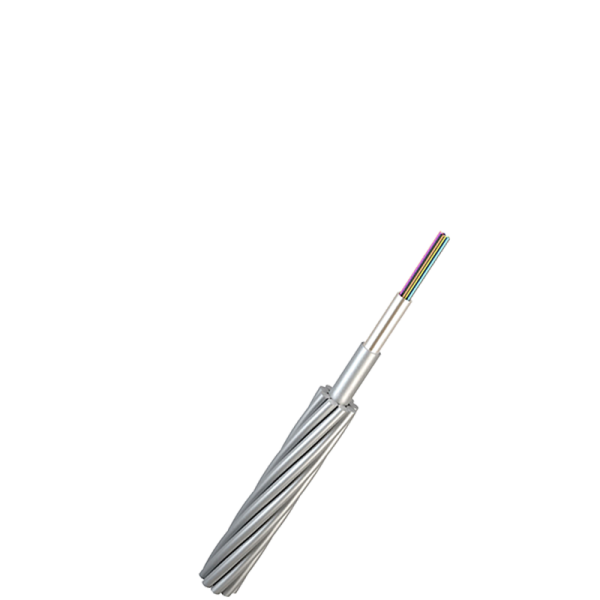

Singer Layer AL-covered Stainless Steel Tube OPGW

Type	Max. Core:G652	Max. Core:G655	OD (mm)	Weight(kg/km)	RTS (kN)	Short Circuit Capacity(kA2S)	Package:4km/drum (m*m)
OPGW -AST-72 [70.2;33.3]	60	48	11.4	439	70.2	33.3	1.3*1.1
OPGW -AST-78 [75.7;40.0]	24	/	11.6	468	75.7	40	1.3*1.1
OPGW -AST-76 [61.0;41.8]	36	28	11.6	422	61	41.8	1.3*1.1
OPGW -AST-81 [65.3;45.7]	48	36	11.9	451	65.3	45.7	1.3*1.1
OPGW -AST-82 [42.5;56.3]	60	48	12.1	377	42.5	56.3	1.4*1.1
OPGW -AST-92 [90.0;54.4]	96	84	13	564	90	54.4	1.5*1.1
OPGW -AST-97 [95.8;58.5]	72	58	13.2	598	95.8	58.5	1.5*1.1

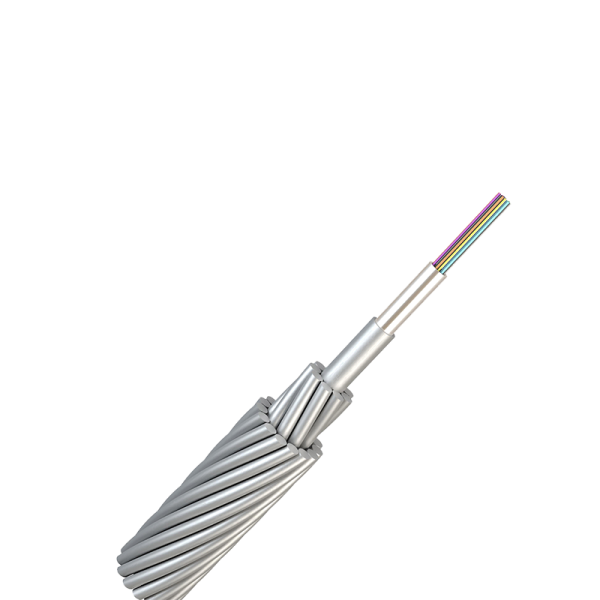

Double Layer AL-covered Stainless Steel Tube OPGW

Type	Max. Core:G652	Max. Core:G655	OD (mm)	Weight(kg/km)	RTS (kN)	Short Circuit Capacity(kA2S)	Package:4km/drum (m*m)
OPGW – 24G652-AST-191 [112.3;296.3]	24	/	18	793	112.3	296.3	1.4*1.1
OPGW -AST-151 [141.0;149.0]	24	24	16.2	885	141	149	1.3*1.1
OPGW – AST-183 [164.3;221.5]	36	28	17.6	1044	164.3	221.5	1.4*1.1
OPGW -AST-214 [127.7;374.7]	48	36	19.2	899	127.7	374.7	1.5*1.1
OPGW – AST-240 [187.2;387.2]	60	48	20.4	1346	187.2	387.2	1.6*1.1

Type	AL-covered Stainless Steel Tube OPGW
Fiber Core	8/12/16/24/36/48/96
Application	photovoltaic/wind power plant/transmission line/substation
