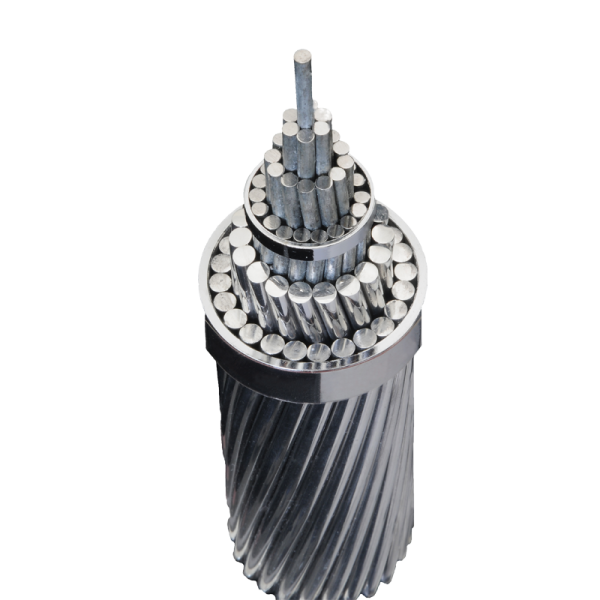

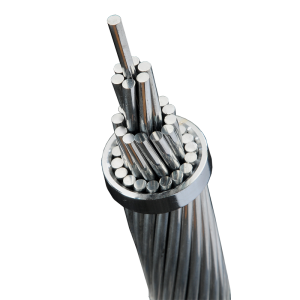

AACSR/EST

High Strength Aluminum-alloy Conductor, Extra-High-Strength Steel Wire Reinforced

Extra high strength steel, and high-strength aluminum alloy.
High strength/weight ratio for big span transmission, adjustable aluminum/steel ratio of cross section.
Long life span, safety under severe conditions.
Lower engineering investment, good sag performance at large span.

ZTT^® ET EXPRESSWAY^TMAACSR 525/240

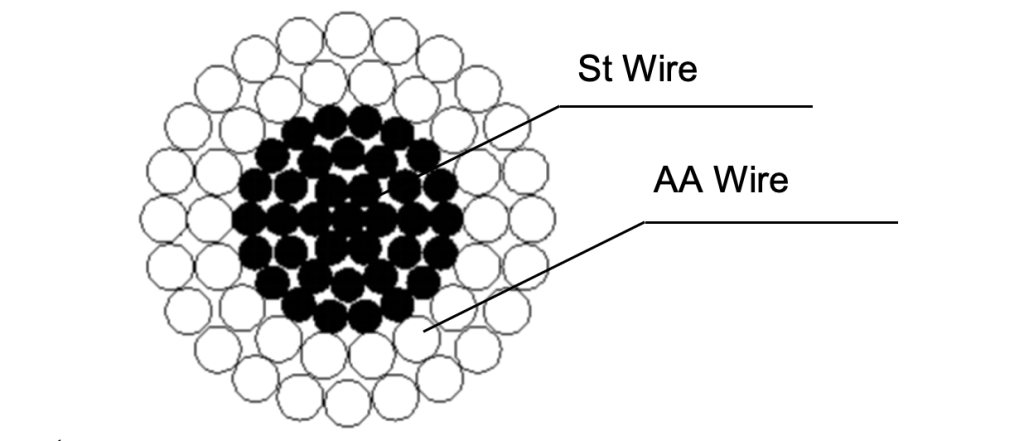

Conductor Technical Structure

Parameter		Unit	Value
Structure	Center: Steel wire	Nos./mm	1/2.86
	Layer 1: Steel wire		6/2.86
	Layer 2: Steel wire		12/2.86
	Layer 3: Steel wire		18/2.86
	Layer 4: Aluminum alloy wire		18/4.00
	Layer 5: Aluminum alloy wire		24/4.00
Standard		/	IEC 61089/ 62641/ 63248
Stranding direction of outer layer		direction	Right-hand
Conductor diameter		mm	36.02
Cross section		mm2	765.49
Conductor weight		kg/km	3334.2
Rated tensile strength		kN	481.34
Modulus of Elasticity		GPa	96.9
Coefficient of linear expansion		10-6/℃	16
Max. DC Resistance at 20℃		Ω/km	0.0632
Lay ratio	Aluminum Alloy layer	times	24-wire layer 10-14
			18-wire layer 10-16
	Steel layer		18-wire layer 12-18
			12-wire layer 14-22
			6-wire layer 16-26
