It is applicable to connect extruding MV cables each other, suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.
| Voltage （kV） | 123 |
| Insulation Diameter（mm） | Φ57～Φ91.6 |
| Cross section Area of cable conductor（mm2） | 240-2000mm² |
| The conductor connection method | Crimping Bolt shear |
| Testing items | Testing contents | value |
| AC withstand Test | Dry AC withstand test | 160kV 15min |
| Impulse test | Lightning impulse | 550kV，±10 times |
| Current carrying capacity | Rate current Short-circuit current |
By cable spec |
| Stress cone electrical performance |
AC withstand test Partial discharge test |
160kV 30min As 96kV，≤5pC |
| Supporting insulator AC/DC withstand test Impulse test |
DC withstand test Lightning impulse |
25kV 1min 37.5kV,±10 times |
| Creepage distance | Minimum flashover distance Minimum creepage distance |
Composite：1242mm Porcelain：1280mm Composite：3906mm Porcelain：3906mm |
| Pollution level | IV |
The information of dimension and weight

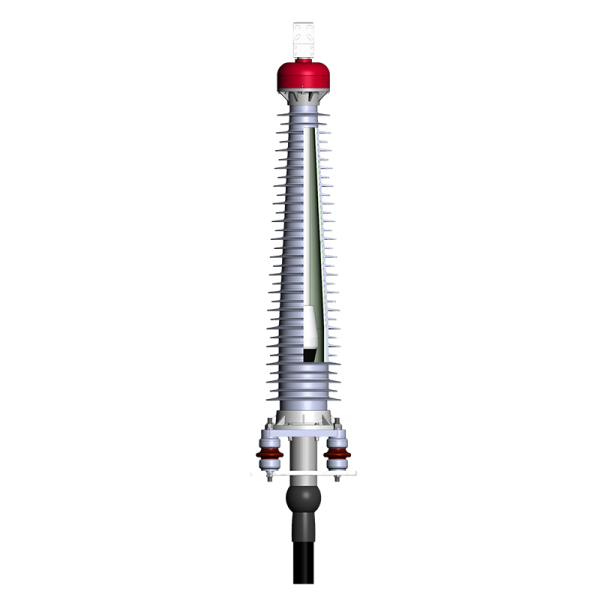

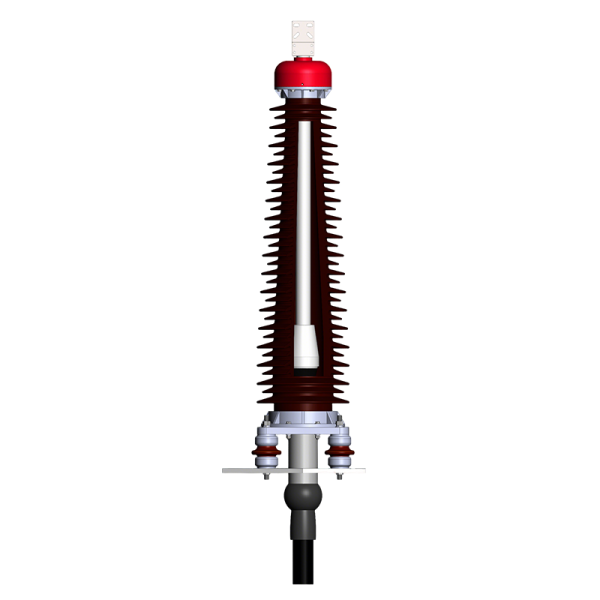

The height of Porcelain：1800mm，the weight of Porcelain：220kg；
The height of Composite：1800mm，the weight of Composite：130kg。
the maximum bending moment
The bending moment of Porcelain：12kN•m，the bending moment of Composite：15kN•m。
