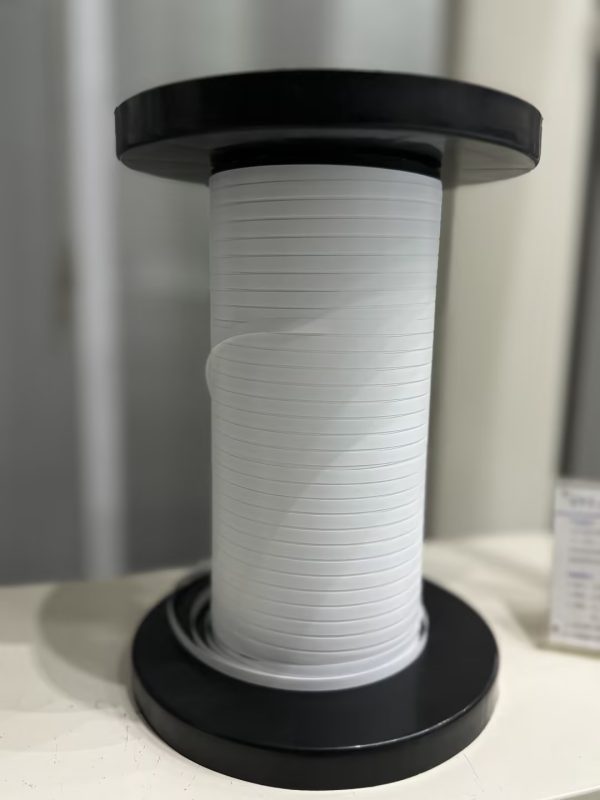

White reflective film（ZTT-FGM-BO1)

To meet the cost reduction trend of photovoltaics, we launched CPC (coating-PET-coating) white reflective film products (ZTT-FGM-B01). The products are produced through the optical coating production line, and the white coatings and bonding layers are self-developed, which have excellent anti-UV performance and reflection gain; besides, with the mature manufacturing process and low manufacturing cost, the component gain is estimated by the component factory to have reached 0.8-1.2%.

Product  Features

Excellent UV resistanceThe double-sided high-reflective coating can protect the base layer free from discoloration under UV200kWh/m2
Excellent reflection gainWhite PET film; reflectivity more than 80% in 380-1100nm wave band
Excellent heat resistanceSelf-developed high crosslinked film has passed 150℃/72h hot baking test
High cost performanceMature manufacturing process, low manufacturing cost

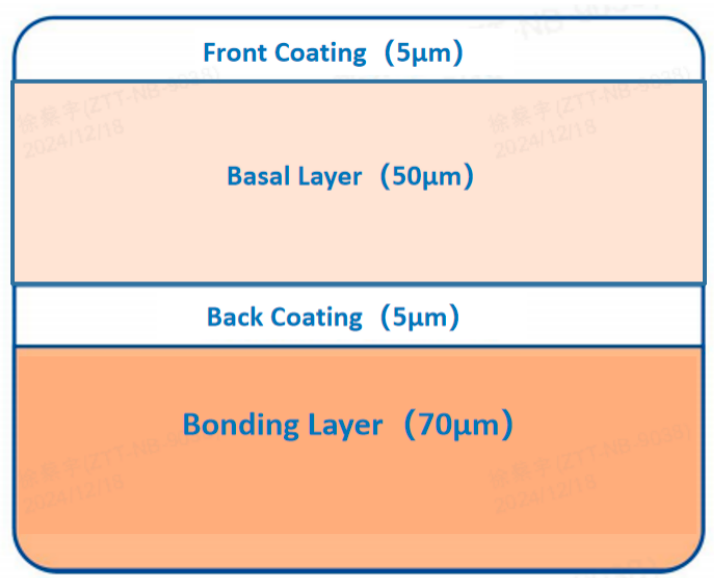

Product structure diagram

Technical Indicators

No.	Test Item	Unit	Value	Test Standard
1	Thickness	μm	Nominal value ±5%	GB/T13542-2009
2	Width	mm	Nominal value ±0.2	GB/T13542-2009
3	Tensile strength	Mpa	＞70	ISO527-3
4	Elongation at break	%	＞90	ISO527-3
5	Dimensional stability	%	＜2	GB/T 13542.2-2021
6	Peeling strength	N/cm	＞0.1	GB/T 2790-1995
7	Peeling strength with EVA	N/cm	＞12	GB/T 2790-1995
8	(380-1100nm) Reflectance	%	≥80	Integrating sphere method
9	Damp heat (2000h) UV aging (200kWh/m²) Thermal cycling (200 cycle) Hot bake test（150℃,72h）	Appearance	No brittle fracture, blistering, delamination	IEC 61215

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

White reflective film（ZTT-FGM-BO1)

Related Products

Related products

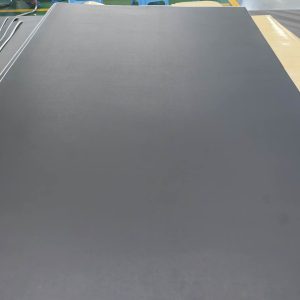

Lightweight products-hard back plate（ZTT-CHC）

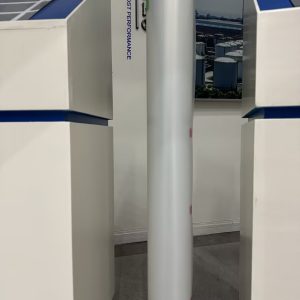

Lightweight products-transparent front plate（ZTT-KPX320T)

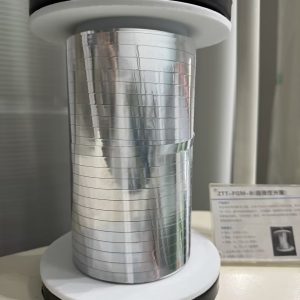

Light redirecting film（ZTT-FGM-J01）
