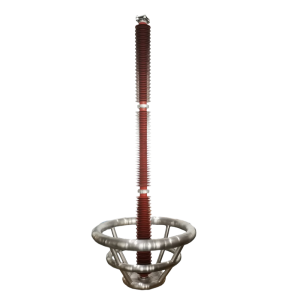

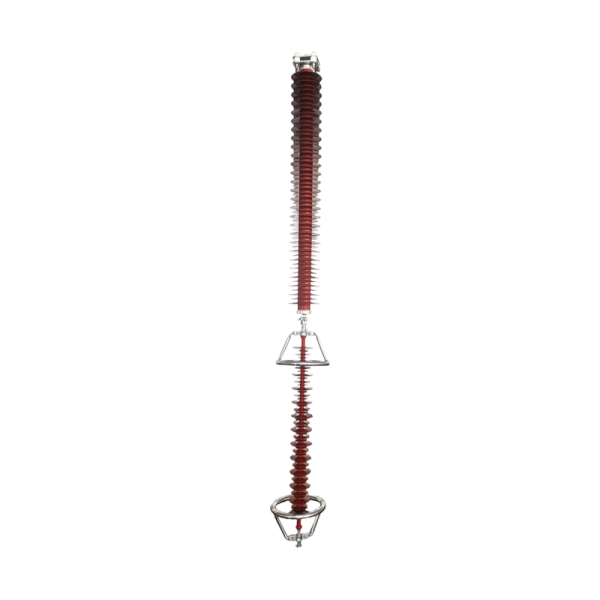

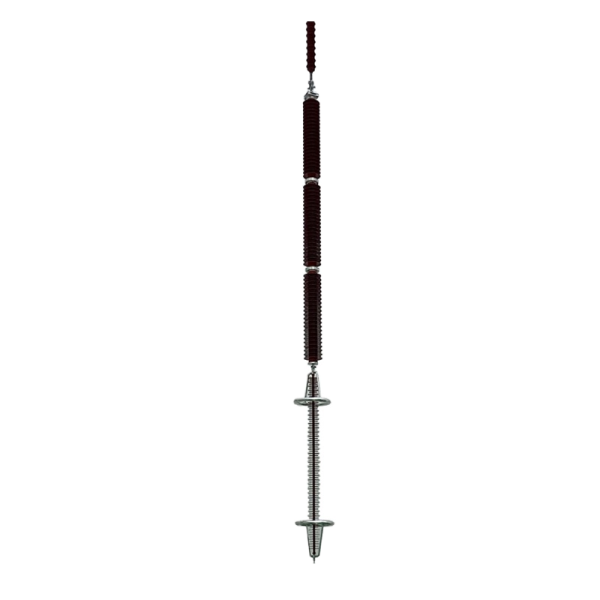

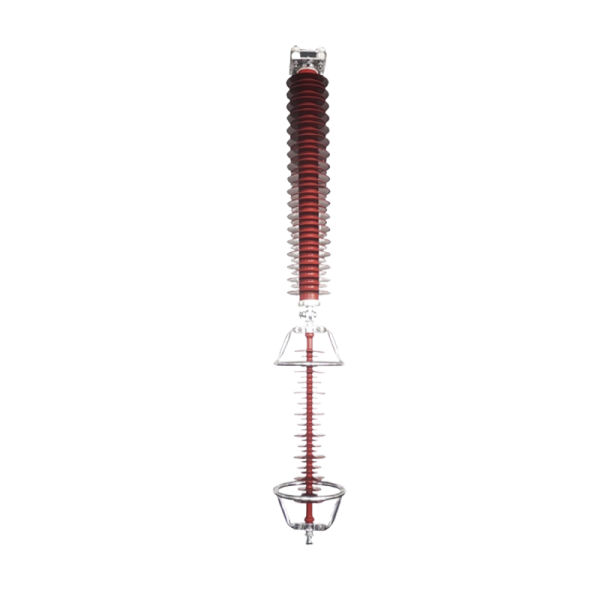

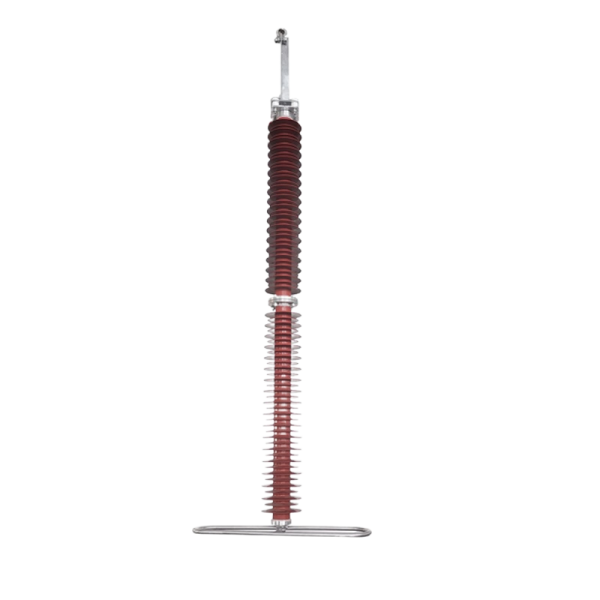

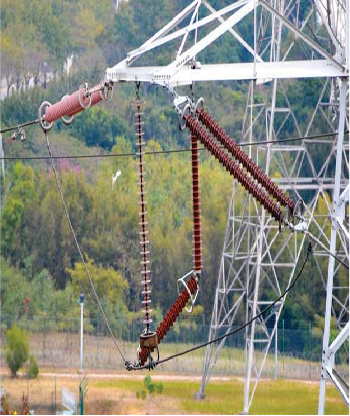

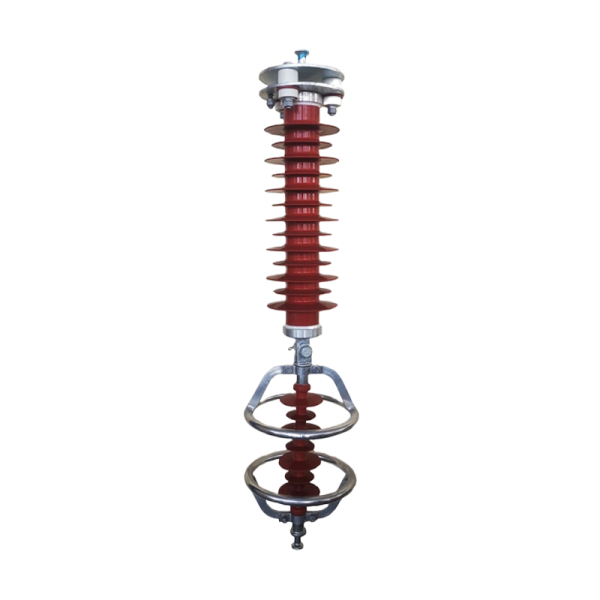

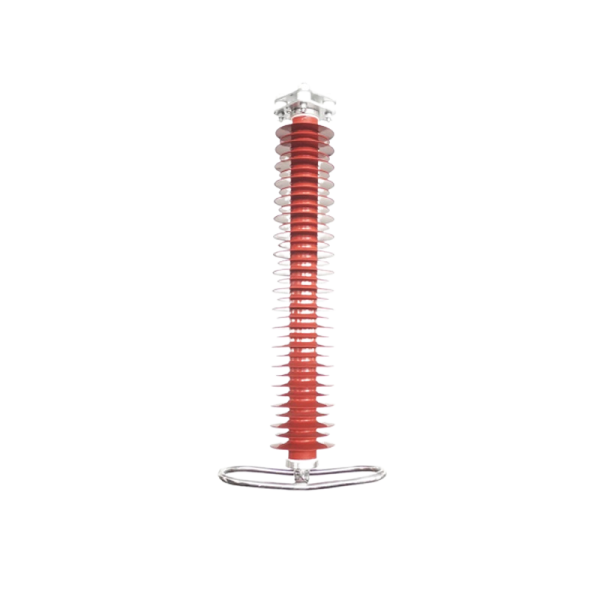

Surge Arrester with Series Gap

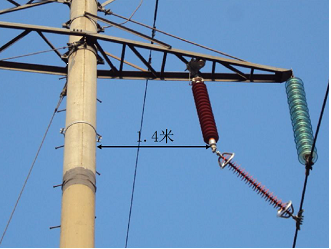

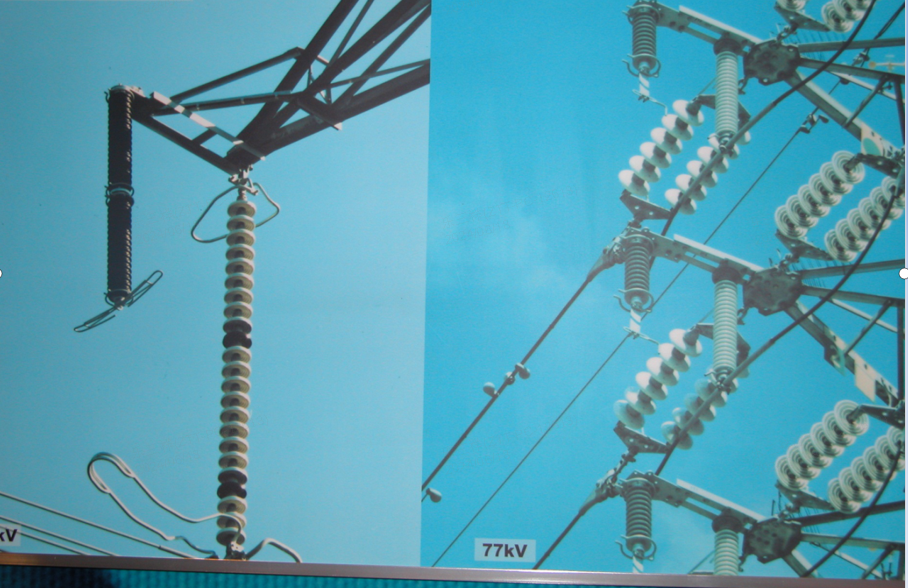

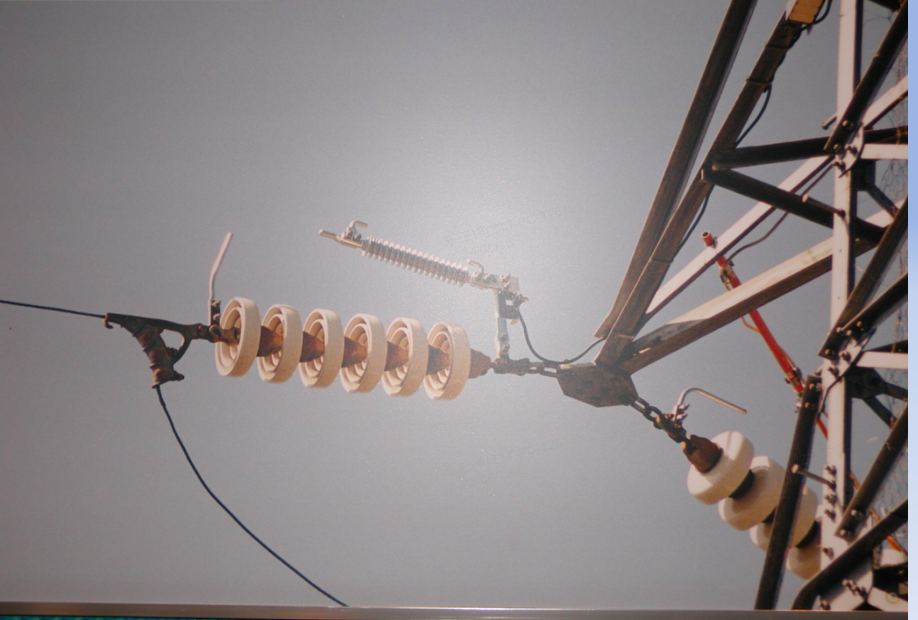

Surge arresters with series gaps isolate the operating voltage through gaps, avoiding voltage influence and showing good pollution resistance.

The resistor chip adopts the aluminum spraying technology without free edges, which makes its current-carrying capacity larger and can be increased by 15-20% in comparison.
The side insulation of the resistor chip adopts the glass glaze process. Compared with the insulating paint, its heat-resistant temperature is 100℃-200℃
Assembled in a large-scale environment that has passed MA inspection, the temperature and humidity inside the arrester are effectively controlled, thus ensuring the long-term and reliable operation of the arrester.

Product model	System voltage kV	Rated voltage kV	1mA DC reference voltage	8/20μs lightning impulse residual voltage	2ms square wave flow capacity	Repeated transfer charge	4/10us high current shock resistance	Gap distance
Product model	kV（r.m.s）		≮kV	≯kVp	A	C	kA	mm
YH5CX-42/120J	35	42	60	120	400	0.8	100	150±5
YH5CX-42/120K	35	42	60	120	400	0.8	100	150±5
YH5CX-51/134J	35	51	73	134	400	0.8	100	150±5
YH5CX-51/134K	35	51	73	134	400	0.8	100	150±5
YH10CX-90/260J	110	90	130	260	600	1.2	100	480±15
YH10CX-90/260K	110	90	130	260	600	1.2	100	480±15
YH10CX-96/280J	110	96	140	280	600	1.2	100	480±15
YH10CX-90/280K	110	96	140	280	600	1.2	100	480±15
YH10CX-102/296J	110	102	148	296	600	1.2	100	480±15
YH10CX-102/296K	110	102	148	296	600	1.2	100	480±15
YH10CX-180/520J	220	180	260	520	600	1.2	100	835±15
YH10CX-180/520K	220	180	260	520	600	1.2	100	835±15
YH10CX-192/560J	220	192	280	560	600	1.2	100	835±15
YH10CX-192/520K	220	192	280	560	600	1.2	100	835±15
YH10CX-204/592J	220	204	296	592	600	1.2	100	835±15
YH10CX-204/592K	220	204	296	592	600	1.2	100	835±15
YH20CX-396/1050J	500	396	561	1050	1500	3	100	1500±50
YH20CX-396/1050K	500	396	561	1050	1500	3	100	1500±50
