Suitable for transmission and distribution system with rated voltage up to 26/35kV.

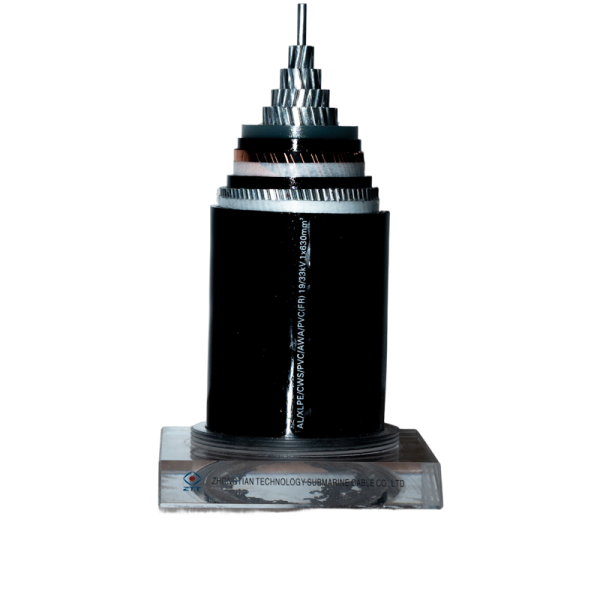

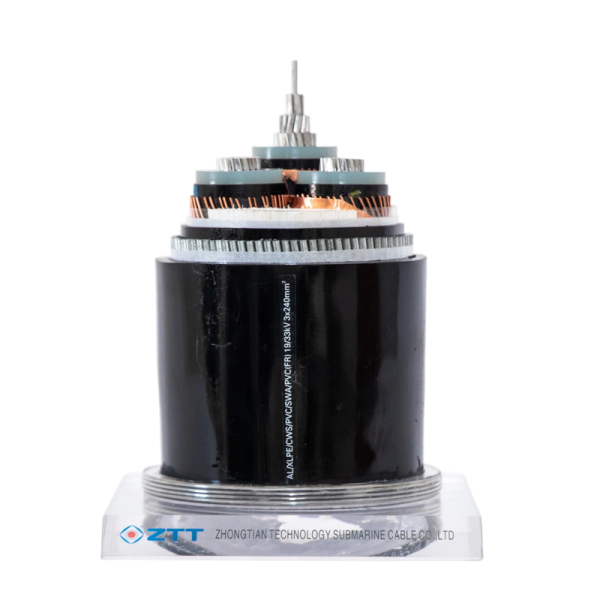

The MV screened armored cable provides both reliable electromagnetic interference protection and robust mechanical resistance, making it suitable for direct burial or installations in demanding environments.
Cables are offered accords with different standards, IEC 60502-2, HD, NF C, NBR, AS/NZS, IRAM, GOST.

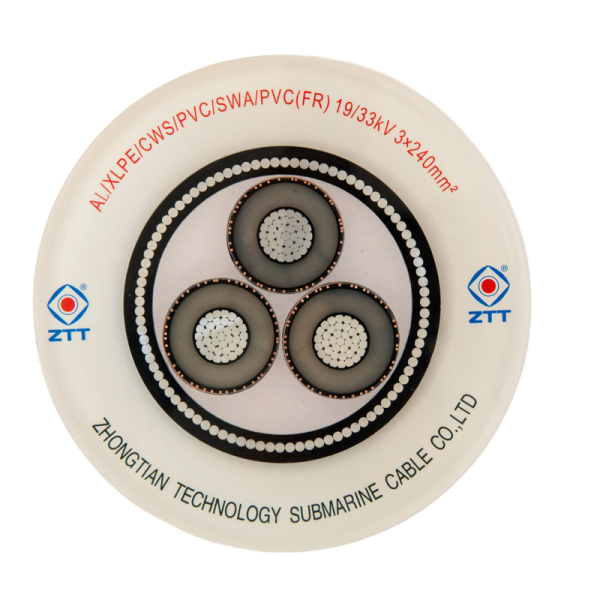

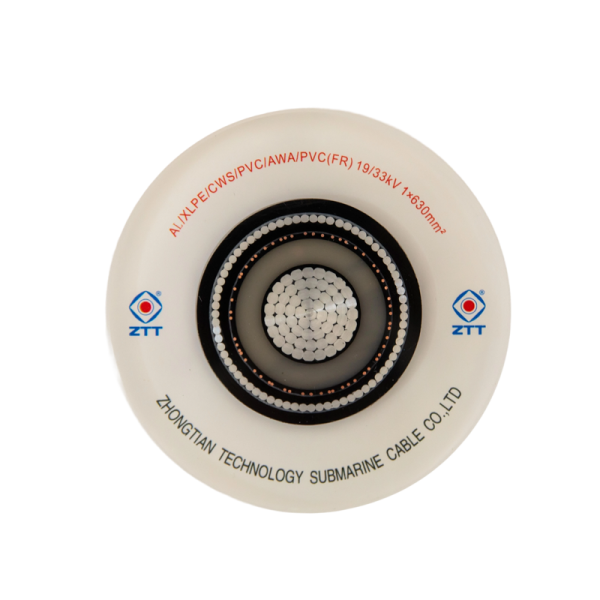

Conductor: Copper/aluminum wire, class 2 stranding
Conductor screen: Extruded semiconducting layer
Insulation: Cross-linked polyethylene(XLPE)
Insulation screen: Extruded semiconducting layer
Metallic screen: Optional of copper wire, copper tape
Inner sheath: Optional of Polyvinyl Chloride(PVC), Polyethylene(PE), Low Smoke Zero Halogen compound(LSZH)
Armor: Optional of aluminum wire, aluminum tape or laminated aluminum tape
Outer sheath: Optional of Polyvinyl Chloride(PVC), Polyethylene(PE), Low Smoke Zero Halogen compound(LSZH)
Max. continuous temperature in operation: 90℃
Min. installation ambient temperature: 0℃
Min. bending radius: Single core 15 × OD, three core 12 × OD

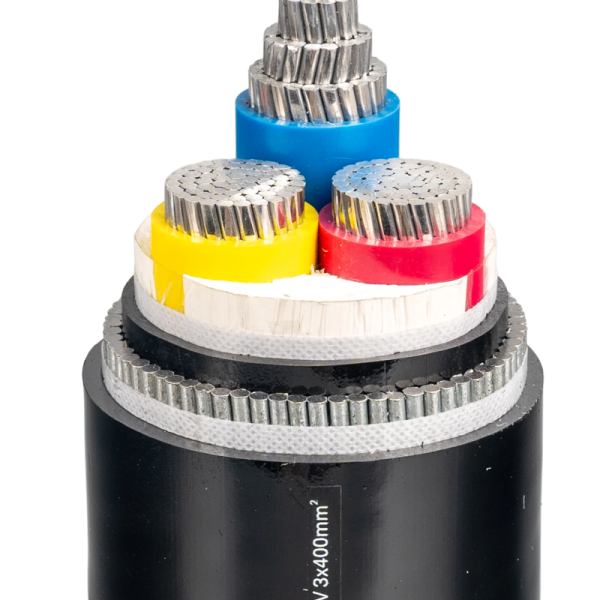

ZTT MV underground power cables have excellent electrical properties, intended for use in power transmission and distribution substation systems with an industrial frequency rated voltage of 6-35kV, with special features on request like flame-retardant, water blocking, anti-termite, etc.
This type of cables are generally laid indoors, in tunnels and cable trenches and other places where certain radial mechanical external force or tension may happen.
