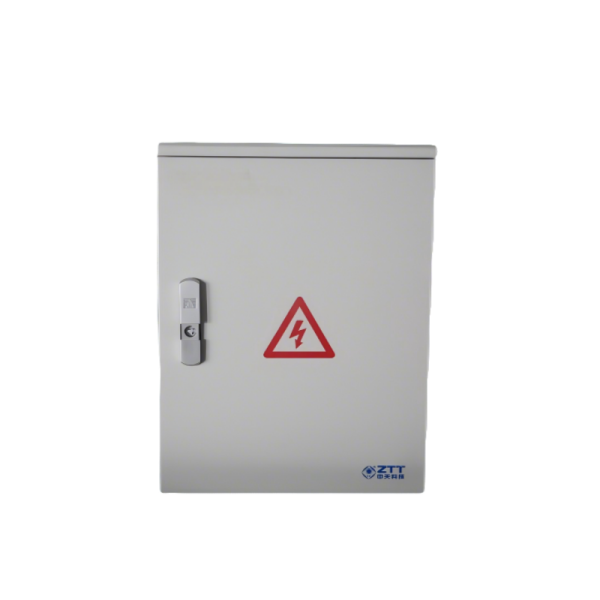

Small integrated power supply for 5G equipment for the place and environment, in line with industry trends, reduce site pressure, to meet the needs of expansion and evolution.
| Technical Parameters | 5000W | 9000W |
| Rated output | 5000W | 9000W |
| Rectifier | 50A/75A | 50A/75A |
| Rated output voltage | 57V DC | 57V DC |
| Peak efficiency | ≥96.5% | ≥96.5% |
| Input Voltage | 110/220 VAC (85 VAC-300 VAC); | 110/220 VAC (85 VAC-300 VAC); |
| AC input | 63/2P×2,class B SPD*1 | 63/4P×2,class B SPD*1 |
| DC output | 63A/1P*3,32A/1P*3,class C DC surge arrester *1, access control sensor *1, temperature and humidity sensor *1 | 63A/1P*6,32A/1P*6,class C DC surge arrester *1, access control sensor *1, temperature and humidity sensor *1 |
| Battery Access | 125A×2 | 125A×2 |
| FSU | FSU*1 | FSU*1 |
| ODF | 12-core optical fiber fusion disk is configured with a 12-port cable-mounted SC adapter | 12-core optical fiber fusion disk is configured with a 12-port cable-mounted SC adapter |
| Dimensions | 550H*400W* 270D(mm) | 1200H*600W* 600D(mm) |
| Protection level | IP55 | |
| Weights | 25.75kg | 25.75kg |
| Installation methods | Supports wall hanging/pole and floor mounting | Support floor mounting installation |
| Battery storage (can be placed) | ||
| Battery | Lithium iron phosphate battery 100AH/51.2VDC*1(16 strings)*1 | Lithium iron phosphate battery 120AH/51.2VDC*1(16 strings)*2 |
| Dimensions | 490*390*132(mm) | 490*390*132(mm) |
| Weights | 40.75kg | 40.75kg |
It can be widely used in indoor distribution system, outdoor communication base station, traffic light station, monitoring network and other scenarios.
