Integrated energy cabinet

Integrated energy cabinet, integrates multiple units in one cabinet, with multiple energy input and output, modular design, high efficiency and energy saving, overcoming many problems of communication power supply.

Product Description

Based on the concept of “integration, intelligence and efficiency”, the integrated energy cabinet adopts innovative fusion technology and innovatively designed intelligent digital network energy products. The multi-input and multi-output power supply, HVDC distribution unit, and intelligent lithium battery are integrated in one cabinet with about 20U installation space. Multi-input multi-output power supply adopts modular design, flexible configuration, high efficiency, green energy saving. Realize the input and output of various forms of energy such as mains power, photovoltaic, oil machine, battery, etc., which can be used as multi-form energy for communication, industry, people’s livelihood, precision instruments, etc. Effectively solve the problems faced by the communication power system, such as high energy consumption, low product/module universal rate, bloated and complex power system, product information, data lag and so on.

Product Advantages

Short construction cycle:
Integrated design, on-site pre-installation and commissioning takes only 1 day to meet the demand for rapid station building, and the cost of remodeling and construction has dropped dramatically.
Precise deployment:
Low construction cost, construction planning is not restricted by the traditional server room.
Precision refrigeration:
Fully enclosed hot and cold channels are isolated to improve refrigeration efficiency, and the emergency exhaust system has a self-sealing function to meet the heat dissipation time of more than 3 hours.
High-efficiency and Intelligent:
High-efficiency intelligent power supply and distribution system and backup battery, equipped with intelligent monitoring, intelligent control, intelligent peak shaving, intelligent metering, intelligent stacking of light and other key technologies, which can realize savings in electricity costs and reduce carbon emissions.

Integrated energy cabinet
Form		Technical Parameters

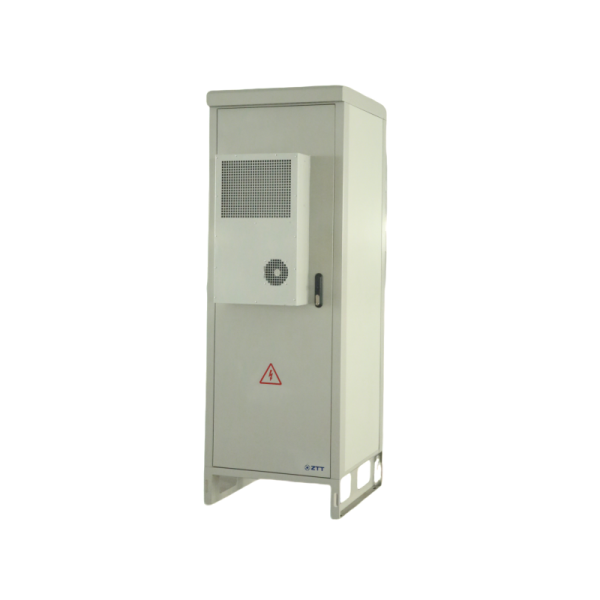

Outdoor Cabinet	Cabinet Outside Dimensions	2200mm (H) x 750mm (W) x 750mm (D) (with 200mm base, excluding projections)
	Structure and Material	Sandwich panel construction, high quality steel plate
	Installation space for equipment in the cabinet	≥40U
	Cupboard door	Left door opening (hinge on left side of cabinet)
	Door locks	Heaven and earth linkage + 3-point lock
	Cabinet Color	RAL7035
	Protection class	IP55
	Temperature control equipment	DC Inverter All-in-One Air Conditioner, DC1500W
	Installation	Floor mounting
Power system	Power Plug Frame	Multi-input multi-output DC power supply frame form factor: Meet the 19-inch standard frame installation (excluding the width of the mounting lugs), the height does not exceed 7U. The frame is required to be able to install no less than 8 rectifier modules. DC power distribution: Configuration 16A×2+32A×3+63A×3, battery tap 125A×4.
	Power Plug Frame	AC input power distribution module 100A/4P*2 (interlocked), with B+C lightning protection device
	Mix-and-match function	Meet the rectifier module and photovoltaic module slot mixing, realize fast stacking light
	Intelligent DC Tap	Meet the requirements for separate metering and separate on/off control
	Monitoring Module	With communication management and operation information display for solar energy access module and rectifier module;
	Monitoring Module	With communication management for intelligent lithium iron phosphate battery
Intelligent Lithium	Sizes	Height ≤ 3U, W x D ≤ 450mm x 500mm (without lugs, with terminals);
	Capacity	48V/100Ah
	BMS Monitoring	Telemetry: Battery system and battery pack capacity (S0C), total voltage, cell voltage, charging current, discharging current, temperature and so on. Telemetry: Battery system and battery pack charging status, discharging status, total voltage high alarm, total voltage low alarm, electric single body charging over-voltage alarm, battery single body discharging under-voltage alarm, battery pack short-circuit alarm, battery high temperature alarm, battery low temperature alarm, ambient high temperature alarm, ambient low temperature alarm and so on.

Access network/base station rooms with poor cooling effect or poor cooling conditions

Scenarios with insufficient cooling source, power supply and backup and unsuitable for adding precision air conditioners, switching power supplies and batteries.

Scenarios with sufficient power supply and backup, but insufficient air-conditioning cooling and unsuitable for adding precision air-conditioning, or poor cooling conditions in the BBU installation area.
