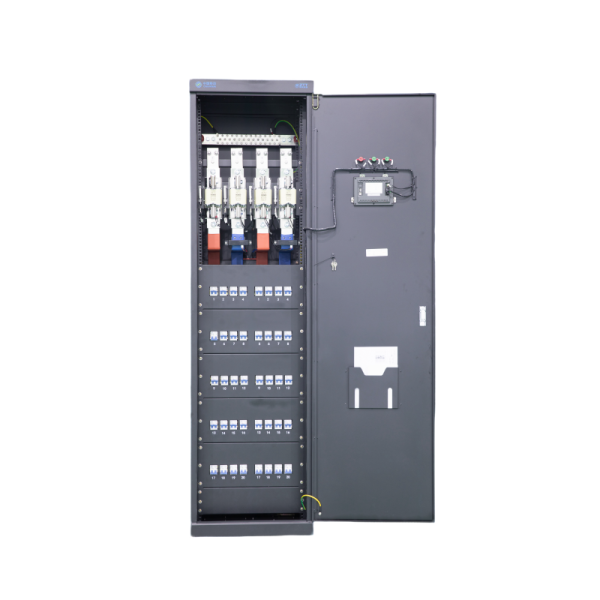

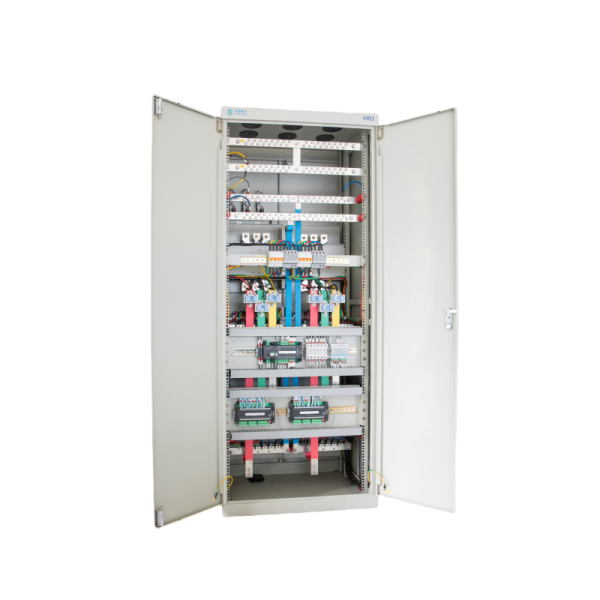

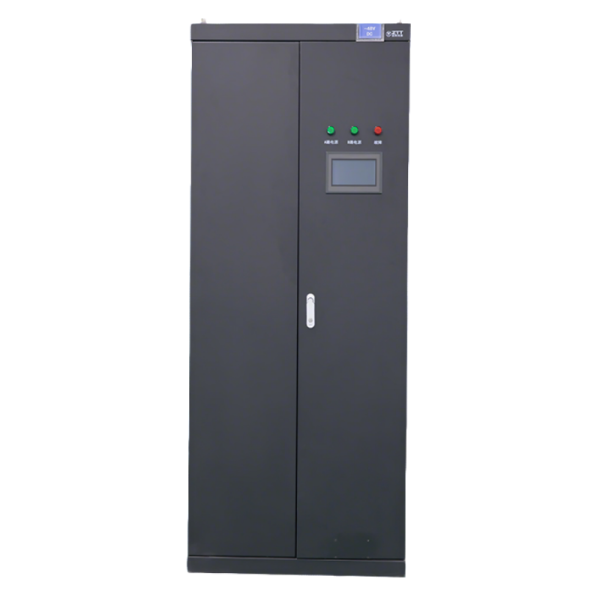

Array Cabinet

Array cabinet is a cabinet at the top of a list of cabinet devices. Usually, the front cabinet is called the array cabinet.

Get Quote
Product Description
  • The main function of the column array cabinet is to provide power for the AC or direct load of this column cabinet, to power distribution, monitoring, measurement, protection, alarm and other functions. The array cabinet is similar to a cabinet type distribution box, which contains a lot of circuit breakers.
Product Advantages
  • The cabinet is made of high quality cold rolled steel plate, the surface electrostatic spraying, beautiful and generous.
  • The power distribution cabinet adopts modular and standardized design, flexible configuration and convenient production.
  • Cabinet internal wiring is convenient, reliable and beautiful.
  • It has the advantages of convenient incoming and outgoing line management and full frontal operation for customers.
  • The power distribution cabinet has a large capacity and is especially suitable for large equipment rooms.
  • Saving information: When a power failure occurs, all Settings and status parameters of the power cabinet before the failure are automatically saved. After the device is powered on again, the Settings and status parameters of the power cabinet are automatically restored.
No. Cabinet Capacity(A) Size(W×D×H)mm System Form
1 1250 (600~800)×300×(2000~2600) Single bus(Negative)
2 (1000~1200)×300×(2000~2600) Double bus(Negative)
3 (600~800)×600×(2000~2600) Double bus(Negative)
4 (1000~1200)×600×(2000~2600) Double bus(Negative)
5 1000 (600~800)×300×(2000~2600) Single bus(Negative)
6 (1000~1200)×300×(2000~2600) Double bus(Negative)
7 (600~800)×600×(2000~2600) Double bus(Negative)
8 (1000~1200)×600×(2000~2600) Double bus(Negative)
9 630 (600~800)×300×(2000~2600) Single bus(Negative)
10 (1000~1200)×300×(2000~2600) Double bus(Negative)
11 (600~800)×600×(2000~2600) Double bus(Negative)
12 (1000~1200)×600×(2000~2600) Double bus(Negative)
13 400 (600~800)×300×(2000~2600) Single bus(Negative)
14 (1000~1200)×300×(2000~2600) Double bus(Negative)
15 (600~800)×600×(2000~2600) Double bus(Negative)
16 (1000~1200)×600×(2000~2600) Double bus(Negative)
17 250 (600~800)×300×(2000~2600) Single bus(Negative)
18 (1000~1200)×300×(2000~2600) Double bus(Negative)
19 (600~800)×600×(2000~2600) Double bus(Negative)
20 (1000~1200)×600×(2000~2600) Double bus(Negative)
21 160 (600~800)×300×(2000~2600) Single bus(Negative)
22 (1000~1200)×300×(2000~2600) Double bus(Negative)
23 (600~800)×600×(2000~2600) Double bus(Negative)
24 (1000~1200)×600×(2000~2600) Double bus(Negative)



  • Data center: The Array cabinetis used in the data center to transmit mains power to the distribution units of each branch and monitor the current of each output branch in real time.
  • Communication room:In the communication room, the array cabinet is usually used to provide a stable and reliable power supply for various communication equipment, and to monitor the use of power in real time.
