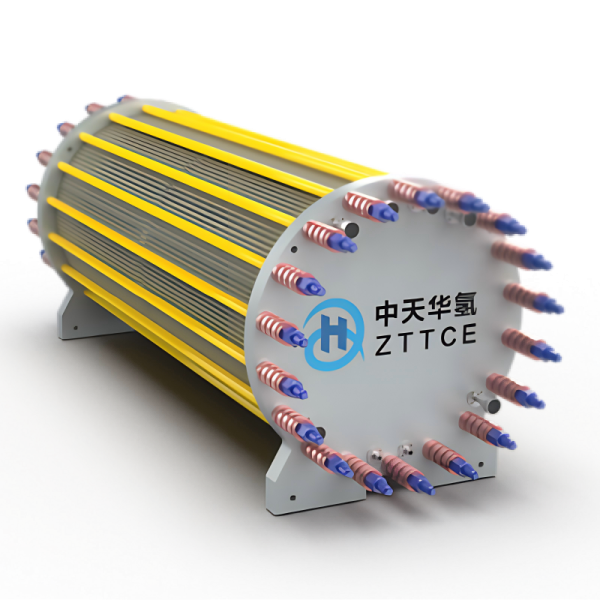

ALKALINE WATER ELECTROLYZER

With the industry-leading energy consumption, our latest electrolyzers are based on the technological innovation and development of National Institute of Clean-and-Low-Carbon Energy (NICE), and have the characteristics of lower energy consumption, more application scenarios, high degree of automation, safe and reliable operation and the 1.8V@0.5A/cm² chamber voltage.

Product  Details

The alkaline electrolyzer is a comprehensive equipment to complete the efficient conversion of water into green hydrogen, with low power consumption and high stability, between power supply and hydrogen output, and between electrolysis modules and gas separation systems, which is suitable for industrial hydrogen production, refueling stations, power-to-gas and other applications.

Product Advantages

High current density, low power consumption
Full automatic control, no people needed
Requirements of GB50177 code for Hydrogen station design specification met
High gas production pressure, usually designed as per 1.6Mpa and can be customized according to customers’ requirements
Safe: The control system is quipped with error proof operation to prevent error operation and prevent safety risks.
The products can be provided according to customers’ requirements and the equipment EPC.

Type	ZDQ-10	ZDQ-50	ZDQ-100	ZDQ-200	ZDQ-300	ZDQ-400	ZDQ-500	ZDQ-800	ZDQ-1000
Hydrogen output（Nm³/h）	10	50	100	200	300	400	500	800	1000
Working pressure（MPa）	1.6（adjustable）
Operating temperature（℃）	85-95
Dc power consumption（kWh/Nm³）	4.0~4.5
Floor area（m²）	60	95	190~270	210~300	230~315	250~340	250~350	340~480	450~640
System efficiency（%）	70-80
Load range（%）	30-110
Hydrogen purity（%）	Before purification：99.8；after purification：99.999
Oxygen purity（%）	≥98.5
Weight（KG）	1500	6500	11000	16500	24500	29500	34000	40000	46500
